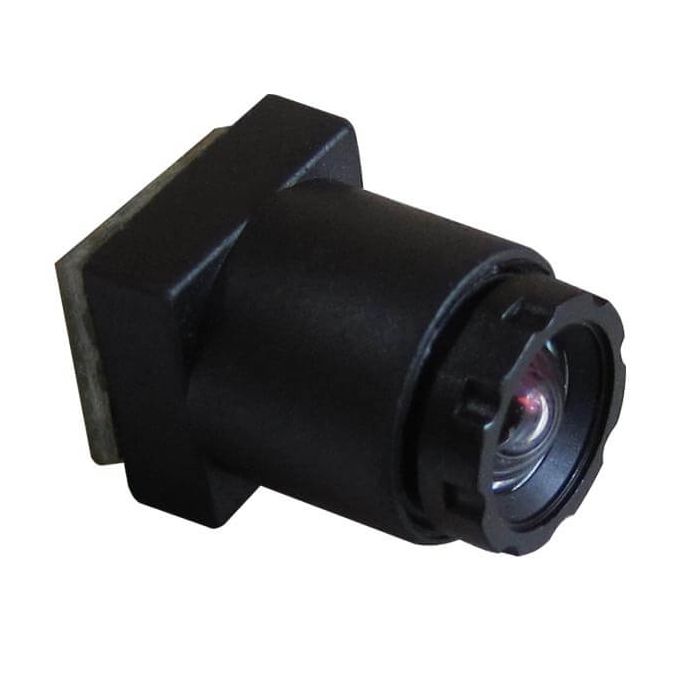

MC900-V9 0.008Lux 520TVL Mini CCTV Camera 90 degree view angle
£44.40
£37.00
Out of stock
SKU
MC900-V9
MC900-V9 0.008Lux 520TVL Mini CCTV Camera 90 degree view angle from 3G Mobile CCTV
MC900-V9 0.008Lux 520TVL Mini CCTV Camera 90 degree view angle
Features & functions
It’s an ultra small high definition CCTV camera with excellent night vision.
Size is 10.5X10.5X17.5mm only, Weight is 2g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
90degree wide view angle provides broad surveillance field.
Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Ready AV/BNC cable and power supply cable. Just plug & play!
Contents
Mini camera X1; RCA/BNC cableX1;AC adapter X1
Specificaitons:
|
PICK UP ELEMENT |
Single chip 1/3 CMOS |
|
|
SYSTEM |
NTSC |
PAL |
|
NUMBER OF PIXEL |
NTSC：656（H）×492（V） |
PAL：786（H）×576（V） |
|
IMAGE SIGNAL PROCESS |
Digital Signal Processing System |
|
|
SENSOR DIMENSION |
4.75mm（H）×3.55mm（V） |
|
|
HORIZONTAL RESOLUTION |
Approximately 520TV Lines |
|
|
SCANNING SYSTEM |
2：1 Interlace |
|
|
SENSITIVITY |
0.008Lux/F1.2 |
|
|
LENS & VIEW ANGLE |
0.5mm F2.0 /90 ° |
|
|
S/N RATIO |
52dB |
|
|
ELECTRONIC SHUTTER |
OUT （1/60 S TO 1/100000 S） |
OUT （1/50 S TO 1/100000）S |
|
AUTO GAIN CONTROL |
OUT |
|
|
WHITE BALANCE CONTROL |
OUT |
|
|
BACK LIGHT COMPENSATION |
OUT |
|
|
VIDEO OUT |
1.0V p-p/75ohm |
|
|
SIZE (L x W x H) |
10.5x10.5x17.5mm |
|
|
WEIGHT |
2g |
|
|
WORK CURRENT |
35mA |
|
|
POWER REQUIREMENT |
DC 4-24V |
|
|
OPERATING TEMPERATURE |
- 10° C ~ +50°C ，less than 90% RH |
|
|
Connection |
PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT |
|
| Lens | Normal lens |
|---|---|
| Manufacturer | 3G Mobile |
