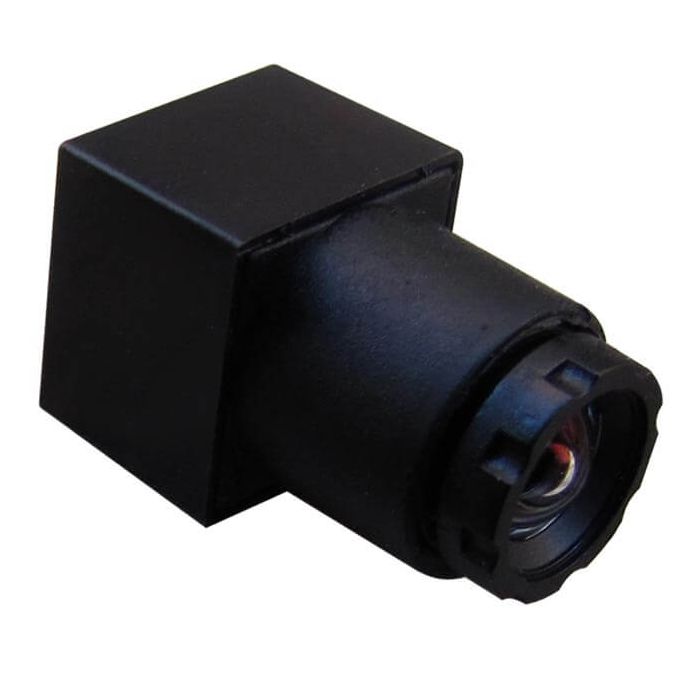

MC900D-V9 0.008Lux 520TVL Mini CCTV Camera 90degree view angle with house
|
PICK UP ELEMENT
|
Single chip 1/3 CMOS
|
|
|
SYSTEM
|
NTSC
|
PAL
|
|
NUMBER OF PIXEL
|
NTSC：656（H）×492（V）
|
PAL：786（H）×576（V）
|
|
IMAGE SIGNAL PROCESS
|
Digital Signal Processing System
|
|
|
SENSOR DIMENSION
|
4.75mm（H）×3.55mm（V）
|
|
|
HORIZONTAL RESOLUTION
|
Approximately 520TV Lines
|
|
|
SCANNING SYSTEM
|
2：1 Interlace
|
|
|
SENSITIVITY
|
0.008Lux/F1.2
|
|
|
LENS & VIEW ANGLE
|
0.5mm F2.0 /90 °
|
|
|
S/N RATIO
|
52dB
|
|
|
ELECTRONIC SHUTTER
|
OUT （1/60 S TO 1/100000 S）
|
OUT （1/50 S TO 1/100000）S
|
|
AUTO GAIN CONTROL
|
OUT
|
|
|
WHITE BALANCE CONTROL
|
OUT
|
|
|
BACK LIGHT COMPENSATION
|
OUT
|
|
|
VIDEO OUT
|
1.0V p-p/75ohm
|
|
|
SIZE (L x W x H)
|
10.5x11.5x20mm
|
|
|
WEIGHT
|
3g
|
|
|
WORK CURRENT
|
35mA
|
|
|
POWER REQUIREMENT
|
DC3.6-5V 70mA
|
|
|
OPERATING TEMPERATURE
|
- 10° C ~ +50°C ，less than 90% RH
|
|
|
Connection
|
PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT
|
|
| Manufacturer | 3G Mobile |
|---|
