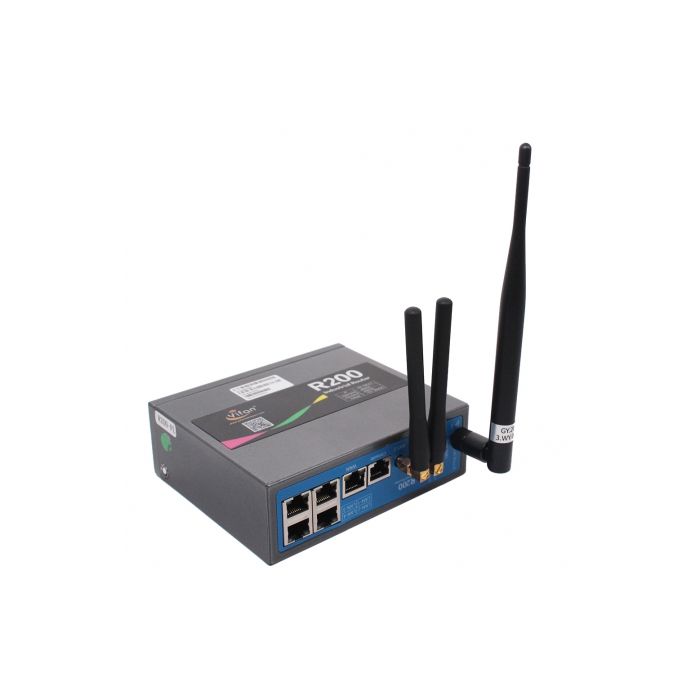

Yifan R200 Series Din rail 4G LTE Dual SIM industrial Router with I/O port
SKU
R200-1
In stock
US$288.04
US$240.03
Overview
Yifan R200 Series Din rail 4G LTE Dual SIM industrial Router with I/O port
Yifan R200 Series Din rail 4G LTE Dual SIM industrial Router with I/O port

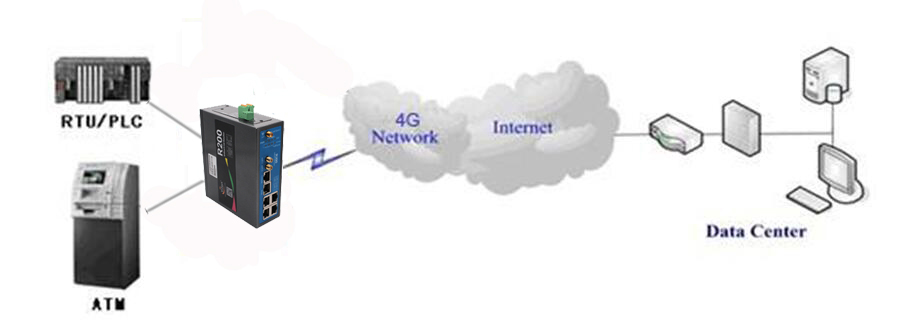

R200 is an intelligent cellular router designed for industrial applications requiring faultless connectivity. It provides a secure, reliable, real-time, remote connectivity for SCADA, distribution management systems, metering, etc. Software-defined, multi-carrier networking, dual SIM models, 802.11n/802.11ac and global 2.5G/3G/HSPA+/LTE/LTE-A options make it easy to get connected. With DIN-rail mounting, a wide operating temperature range, and IP30 metal housing, R200 is a reliable solution for any industrial wireless applications.
Design for Industrial Application
High-performance industrial-grade CPU
High-performance industrial-grade wireless communication module
Support low-consumption mode, scheduled power-on/power-off mode (Optional)
Metal casing, IP30 protection level, suitable for most industrial control applications. Wide range power input (DC 5~36V)
Stability and Reliability
SIM/UIM card slot with built-in 15KV ESD
Ethernet interface with built-in 15KV ESD
RS232/RS485 with built-in 15KV ESD
Multiple protection mechanism to ensure system stability, always keeping online
Auto recovery mechanism, including online detect and auto redial
Hardware and software WDT Watchdog design
High-performance
Support 3G/4G and wired WAN dual link backup（Optional）.
Multiple WAN connection methods, include Static IP/DHCP/PPPOE/DHCP-4G
Support Load Balancer and Load Shunt (Only for dual sim dual module version)
Support APN/VPDN
Support NTP, RTC embedded.
Support multiple DDNS provider service
Support multiple online trigger ways,including SMS, ring and data. Support link disconnection when timeout
Support remote management, SYSLOG, SNMP, TELNET, SSHD, HTTPS, etc.
Support upgrade software from the local and remote maintenance.
Support SPI firewall, access control, URL filtering, etc.
WIFI 802.11b/g/n/ac. Support AP/AP Client/Bridge mode (Optional).
VPN Tunnel: PPTP/L2TP/OPENVPN/IPSEC/GRE
Support TCP/IP, UDP, FTP (Optional), HTTP and other network protocols
Support DHCP server and DHCP client, NAT, DMZ, QOS.
Schedule Reboot, Schedule Online and Offline, etc.
Support GPS function (Optional)
Standard and Convenience
Standard RS232 (or RS485/RS422), ethernet, I/O and WIFI for connecting diverse field assets.
Provide standard wired WAN port (support standard PPPOE protocol)
Intelligent data terminal, automatically enter transmission status after power-on
Powerful central management software for easy device management (optional)
Easy to use and flexible, has multiple working modes
Convenient system configuration and maintenance interface (including local and remote WEB or CLI access)
DIN-Rail mounting, wall mounting or desktop
| Standard and Band |
LTE FDD: B1/B3/B5/B7/B8/B20/B28
B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66 (Optional),
B2/B4/B5/B12/B13/B17/B66/B71 (Optional)
LTE TDD: B38/B40/B41
HSPA+/HSUPA/HSDPA/WCDMA/UMTS 2100/1900/900/850MHz
EV-DO: BC0
CDMA 1x: BC0
EDGE/GPRS/GSM 850/900/1800/1900MHz
|
| Bandwidth |
LTE CAT4: 150Mbps(DL), 50Mbps (UL)
LTE CAT6: 300Mbps(DL), 50Mbps (UL)
LTE CAT12: 600Mbps(DL), 150Mbps (UL)
DC-HSPA+: 42Mbps(DL), 5.76 Mbps(UL)
HSPA+：21 Mbps(DL), 5.76 Mbps(UL)
HSDPA：7.2 Mbps(DL), HSUPA：5.76 Mbps(UL)
UMTS：384Kbps
|
| Transmit Power |
23dBm±2dB
|
| Sensitivity |
<-102 dBm
|
|
Standard and Band
|
Support IEEE802.11b/g/n, 2.4G, support AP mode, Station mode (Optional)
Support IEEE802.11ac, 5.8G, support AP mode, Station mode (Optional)
|
|
Bandwidth
|
IEEE802.11b/g：Maximum speed rate up to 54 Mbps
IEEE802.11n：Maximum speed rate up to 300 Mbps
IEEE802.11ac：Maximum speed rate up to 780 Mbps
|
|
Security
|
Support WEP, WPA, WPA2 and other encryption methods, WPS (Optional)
|
|
Transmit Power
|
26dBm (11b), 21.5dBm (11g), 20dBm (11n), 16dBm (11ac)
|
|
Sensitivity
|
< -72dBm @ 54Mbps
|
|
CPU
|
Industrial-grade 32-bit communication processor
|
|
Flash
|
32MB
|
|
DDR3
|
512MB
|
|
TF Card
|
8GB/32GB (Optional)
|
| WAN Interface |
1 x 10/100/1000M Ethernet (RJ45)
Auto MDI/MDIX, Built-in 1.5KV electromagnetic isolation protection
|
| LAN Interface |
1 x 10/100/1000M Ethernet (RJ45)
Auto MDI/MDIX, Built-in 1.5KV electromagnetic isolation protection
|
| Serial |
1 x RS232/RS485, Built-in 1.5KV electromagnetic isolation protection
Data bit：5, 6, 7, 8
Stop bit：1, 1.5 (Optional), 2
Calibration: null, even, odd, SPACE (Optional) and MARK (Optional)
Baud rate：2400~115200bits/s
|
| LED Indicators |
"PWR", "SYS", "WIFI/BLE", "SIM", "Online", "Signal Strength"
|
| Antenna Interface |
Cellular：2 standard SMA female antenna interfaces, characteristic impedance 50 ohms
WIFI：2 standard SMA male antenna interfaces, characteristic impedance 50 ohms
GPS(Optional): 1 calibrated SMA female antenna interface, characteristic impedance 50 ohms
Bluetooth(Optional): 1 calibrated SMA male antenna interface, characteristic impedance 50 ohms
|
| SIM/UIM Slot |
Standard drawer type user card interface
Support 1.8V/3V SIM/UIM card, built-in 15KV ESD protection
|
| Power Interface |
2 PINS terminal power socket, built-in power reverse protection
|
| Reset Button |
Restore the router‘s parameter configuration to factory values
|
| Casing |
Metal casing, IP30 protection level, suitable for most industrial control applications.
|
| Dimensions |
134.8 x 115.7 x 45 mm (excluding antennas and mountings)
|
| Weight | 520g |
| Input Voltage | DC 12V/1.5A |
| Accepted Range | DC 5~36V |
