PET 210 GPS Pet collar tracker with iOS and Android tracking app

SKU

PET 210

Be the first to review this product

In stock

US$119.45 US$99.54

Overview

PET 210 GPS Pet collar tracker with iOS and Android tracking app from 3G Mobile CCTV

Details

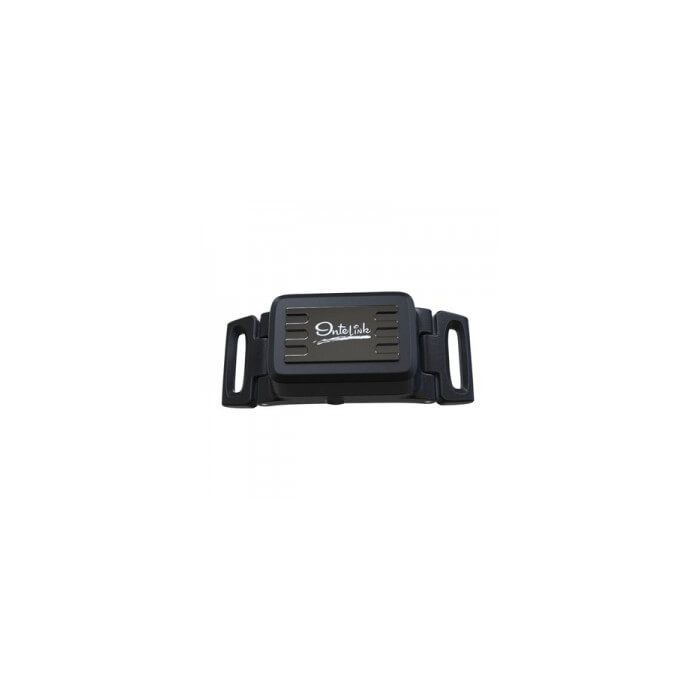

PET 210 GPS Pet collar tracker

The PET 210 GPS pet tracker is the latest in GPS tracking technology for your pets. With thousands of pets going missing or being stolen, the PET 210 has a leading edge Android / iPhone APP, specially designed for PET-210 Pet Tracker so that you can track your pet from your smartphone. It supports Real-time Tracking, Geo-fence Alarm, Low Battery Alarm and History Playback, PET 210 helps you keep in touch with your pet through Smart phone. If you pet leaves an area that has been geo fenced an alert will be sent directly to your smartphone to notify you.

• Set the Geo-Fence with your iPhone or Smart Phone via BLE4.0 technology. 　The working range is around 40 meters in open space.
• Built-in 710mA Li-Polymer battery, the working time could last around 1 year　　as long as your pets are within the Geo-Fence range.
• When your pets run away from the Geo-Fence area, GPS will be turned on 　　automatically and send an alarm to your phone and show the location on the 　map.
• Built-in u-Blox MAX7 GPS module to support fast positioning by AGPS in the 　city area and by Cell ID even without GPS signal.
• Working with both Android & iOS APP.
• Support Smart Tracking Mode.
• Auto Power Saving.
• Support Low Power Alert.
• The device also features real-time tracking, so you can watch where he goes, 　a history function that logs doggie wanderings, and a low-power alarm.

MAX7 GPS module

Receiver type

   56 Channels
   GPS L1C/A
   SBAS L1C/A
   QZSS L1C/A

Time-To-First-Fix

MAX-7C


Cold Start		30 s

Warm Start		28 s

Hot Start		1 s


Aided Starts2		5 s

Sensitivity

MAX-7C

Tracking & Navigation		-160 dBm

Reacquisition		-160 dBm

Cold Start		-147 dBm

Warm Start		-148 dBm

Hot Start		-155 dBm

Horizontal position accuracy4

Autonomous		2.5 m

SBAS		2.0 m

Accuracy of time pulse signal

RMS		30 ns

99%		60 ns

Frequency of time pulse signal

0.25 Hz … 10 MHz (configurable)

Max navigation update rate

10 Hz

Velocity accuracy5

0.1 m/s

Heading accuracy5

0.5 degrees

Operational limits6

   Dynamics
    Altitude
   Velocity

   ≤ 4 g
   50,000 m
   500 m/s

SARA350

Air Interface

GSM or GPRS Quad Band

GPRS

Power Consumption

   GSM 850 / 900 / 1800 / 1900 MHz
   3GPP Release 99
   class 4 (2 W) for 850/900 bands
   class 1 (1 W) for 1800/1900 bands

GPRS Class 10, CS1-CS4-up to 85.6 　kb/s
PBCCH support

   Power Off - < 90 μA
   Idle Mode - <1.6 mA
   Telephony GSM - < 300mA
   GPRS class 10 - 410 mA

GSM Sensitivity

850/900 MHz

1800/1900 MHz

-110 dBm

Messaging

SMS

AT Commands

PDU / Text mode / Cell broadcast

   3GPP 27.005, 3GPP 27.007
   u-blox AT command extension
   3GPP 27.010 MUX protocol

SARA-G340/G350 only

   Voice HR / FR / EFR / AMR
   Echo cancellation
   Noise reduction
   Protocols Embedded TCP/IP, UDP/IP,
   HTTP/FTP
   Network Jamming detection
   GNSS Interfaces Direct access to
　u-blox
   GNSS via module
   AssistNow software for faster
　acquisition
   CellLocate & Hybrid Positioning
   Special features inBand modem
   eCall and ERA-GLONASS support



	nRF51 Series



	Common IC architecture		ARM Cortex-M0 processor Multi-protocol 2.4GHz radio

	Common software architecture		Bluetooth low energy and ANT Easy, fast and safe application 　code-development

	Up to 9.5dB better link budget		More robust radio link / longer range Up to +4dBm TX output power -85 to -96dB RX sensitivity

	Up to 50% lower current consumption		Powerful CPU reduces processing time 100X faster and lower power CPU start-up PPI event and task controller reduces 　CPU activity Flexible power management

More Information

More Information
Lens	Normal lens
Manufacturer	3G Mobile
