In stock
US$242.32
US$201.93
Overview
Milesight UG63 Mini LoRaWAN gateway is a lightweight, indoor 8-channel LoRaWAN gateway with a minimalistic, unobtrusive design so it fits in anywhere. This gateway is great for indoor coverage if you want to create your own private LoRaWAN, and it works excellently for covering indoor blind spots in larger LoRaWAN infrastructures.

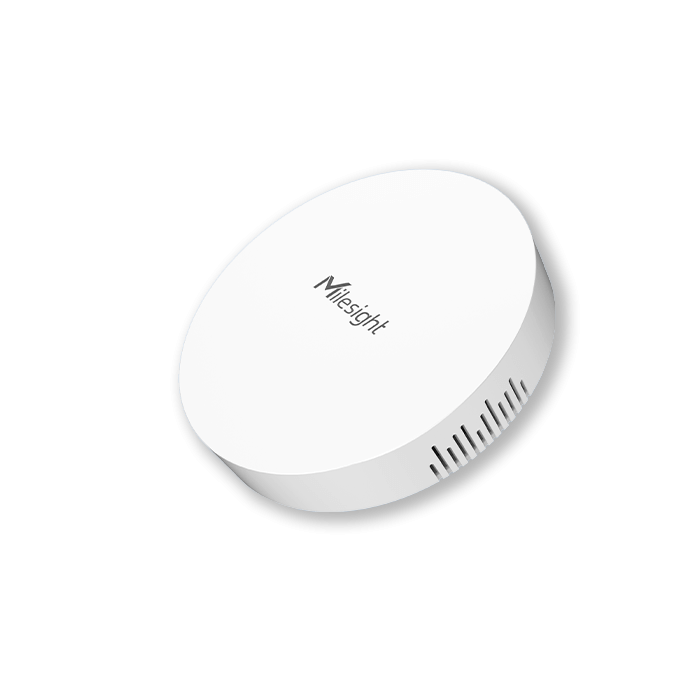

Milesight UG63 Mini LoRaWAN gateway
Milesight UG63 is a lightweight, indoor 8-channel LoRaWAN gateway with a minimalistic, unobtrusive design so it fits in anywhere. This gateway is great for indoor coverage if you want to create your own private LoRaWAN, and it works excellently for covering indoor blind spots in larger LoRaWAN infrastructures.
Eye Catching Design
Sticking to minimalism, the UG63 is as small as a disk, with an elegant and aesthetic appreance it can be installed anywhere with its unobtrusive size and design.
Massive Connectivity
Adopting Smetech SX1302 LoRa Chip, UG63 supports connection with more than 2000 LoRaWAN nodes.
- 8-Channels
- Full Duplex
- Global Frequency Plans
Blind Spot Coverage
Besides the general features of a LoRaWAN Gateway, the Gateway Fleet-feature makes UG63 particularly suited to provide network coverage for indoor blind spots.
Gateway Fleet
The Gateway Fleet feature enables multiple agent gateways to be controlled by a central controller gateway. This facilitates the deployment and management of larger, sprawling LoRaWAN networks.
Listen Before Talk (LTB)
The LTB protocol makes it possible for multiple transmitting nodes to share the same transmitting channel, allowing the device to bypass the Duty Cycle requirements imposed by European standards.
High Compitability
- Embedded Network Server
- LoRa Basics Station
- The Things Network, The Things Industries, ChirpStack, Loriot support
With a built-in Network Server, the UG63 also supports Semtechs latest packet forwarder and is compatible with multiple network server platforms, offering a wide range of deployment and data processing options.
Milesight IOT Cloud
- Store, manage and analyze all your data with a few clicks
- Android & iOS versions allow you to manage devices at your fingertips
Main Features
- High-Performance NXP industrial processor
- SX1302 Chipset gives high traffic capabilities and low power consumption
- Supports LTB (Listen Before Talk) on Downlink
- Flexible mounting options: Desktop, Wall or Ceiling
- Integrated spectrum analyser for detecting noise
- Built-in Network Server
- Python programmable (SDK)
- Low power consumption (3.3W Max)
- PoE Powered or 5VDC jack
- Feature rich VPN and security options
Specifications:
| Hardware System | |
| CPU | 528 MHz, ARM Cortex-A7 |
| Memory | 256 MB DDR4 RAM |
| Flash | 4 GB eMMC |
| LoRaWAN | |
| Antenna | 2 × Internal Antennas |
| Channel | 8 (Half/Full-duplex) |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| LBT | Support |
| Ethernet Interface | |
| Port | 1 × RJ45 (PoE PD supported) |
| Physical Layer | 10/100 Base-T (IEEE 802.3) |
| Data Rate | 10/100 Mbps (Auto-Sensing) |
| Interface | Auto MDI/MDIX |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Others | |
| Reset Button | 1 × RST |
| Console Port | 1 × Type-C |
| LED Indicators | 1 × SYS, 1 × LoRa |
| Built-in | Watchdog, RTC, Timer |
| Software | |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Management | Web, CLI, DeviceHub, Milesight IoT Cloud, Yeastar Workplace Platform |
| App | Python SDK |
| Power Supply | |
| Power Input | 1. 1 × 802.3af standard PoE input 2. 5V by Type-C Port |
| Physical Characteristics | |
| Ingress Protection | IP30 |
| Dimensions | Ф 115 x 21 mm (Ф 4.52 x 0.83 in) |
| Color & Material | White, PC + ABS |
| Installation | Desktop, Wall or Ceiling Mounting |
| Environmental | |
| Operating Temperature | -20°C to +50°C (-4℉ to +122℉) |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
| Manufacturer | Milesight |
|---|
