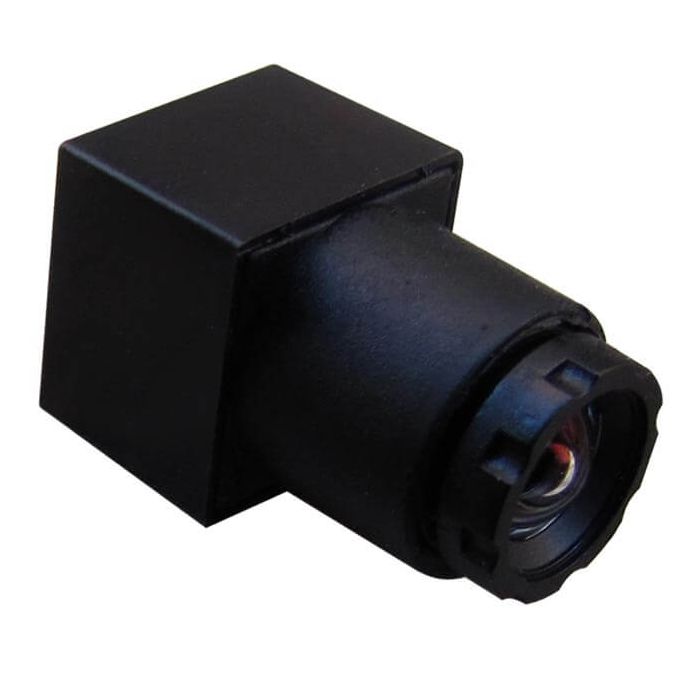

MC900D-V9-12 0.008Lux 520TVL Mini CCTV Camera 90 degree view angle with house

SKU
MC900D-V9-12
In stock
£29.00
-
+
Overview
MC900D-V9-12 0.008Lux 520TVL Mini CCTV Camera 90 degree view angle with house from 3G Mobile CCTV

MC900D-V9-12 0.008Lux 520TVL Mini CCTV Camera 90 degree view angle with house

Features & functions

It’s an ultra small  high definition housed CCTV camera with excellent night vision.
Size is 10.5X11.5X20mm only, Weight is 3g! Ready housed camera is very convenient & easy
to install and conceal.Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.90degree wide view angleprovides broad surveillance field.
Full TV system. Applicable worldwide

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.


Ready AV/BNC cable and power supply cable. Just plug & play!

Contents
Mini camera X1; RCA/BNC cableX1;AC adapter X1

Specificaitons:

PICK UP ELEMENT
Single chip 1/3 CMOS
SYSTEM
NTSC
PAL
NUMBER OF PIXEL
NTSC656H×492V
PAL786H×576V
IMAGE SIGNAL PROCESS
Digital Signal Processing System
SENSOR DIMENSION
4.75mmH×3.55mmV
HORIZONTAL RESOLUTION
Approximately 520TV Lines
SCANNING SYSTEM
21 Interlace
SENSITIVITY
0.008Lux/F1.2
LENS & VIEW ANGLE
0.5mm F2.0 /90 °
S/N RATIO
52dB
ELECTRONIC SHUTTER
OUT 1/60 S TO 1/100000 S
OUT 1/50 S TO 1/100000S
AUTO GAIN CONTROL
OUT
WHITE BALANCE CONTROL
OUT
BACK LIGHT COMPENSATION
OUT
VIDEO  OUT
1.0V p-p/75ohm
SIZE  (L x W x H)
10.5x11.5x20mm
WEIGHT
3g
WORK CURRENT
35mA
POWER REQUIREMENT
DC:5-16V 35mA
OPERATING TEMPERATURE
- 10° C ~ +50°C less than 90% RH
Connection
PIN1- Red DC5V  PIN2- Black GND  PIN3- Yellow VIDEO OUT



More Information
Manufacturer 3G Mobile
