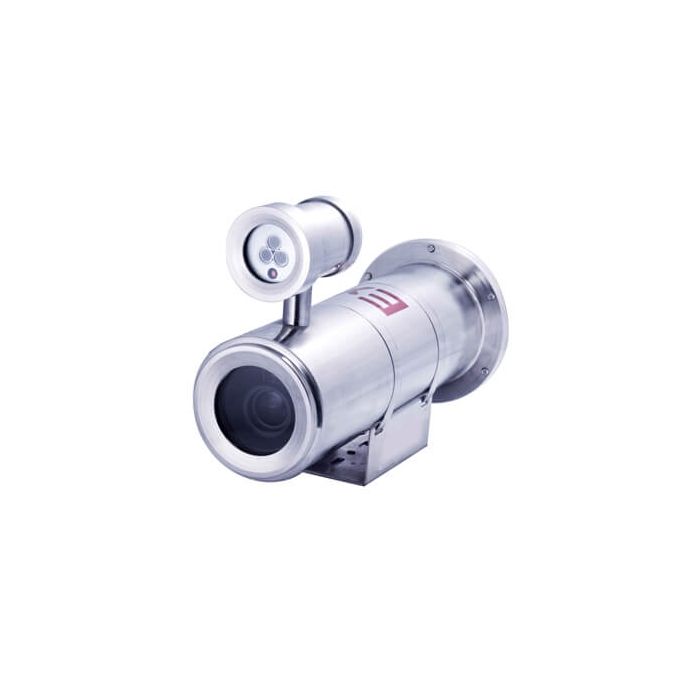

KX-EX707PW explosion proof camera housing

SKU
KX-EX707PW
In stock
£265.00
-
+
Overview
KX-EX707PW explosion proof camera housing enclosure for installing standard IP camera to convert into Ex-proof explosion proof cameras from 3G Mobile CCTV

KX-EX707PW explosion proof camera housing

Original import core , Infrared lightin(automatic switching day/ night), 50-100m visibility optional.
● Well light transmittance, no halation effect .
● Windows glass surface process by nano technology, non-stick oil/dusty/water
● Can loaded fixed focus or zoom camera .
● Low power consumption, thefuselage internal air convection heat dissipation design, can work continuouslyfor a long time
● AC220V/DC12V, other Power Supply can be customized .
● Made of 304 stainless steel material. apply to strong corrosive environment
● Well design for Explosion-proof, anti-corrosion,waterproof , indoor / outdoor use.

Description:

Ex-Level ATEX
II 2G Ex d IIC T6 Gb
II 2D Ex tb IIIC IP68 T80℃ Db
Ingress Protection  level IP66
Temperature  range -40℃~60℃
Relative  humidity ≤95%(+25°C)
Atmospheric  pressure: 80kpa~106 kpa
Infrared distance 50MM 100M   optional
Infrared switch When <0Lux,  Auto open
Wavelength 808nm
Thermostat System Optional
Supply voltage DC12V /AC220V   optional
Suitable environment Apply to explosive gas and  combustible dust environment
Material 304 stainless steel(316, 316L for optional)
inlet interface specifications G3/4″ x 2
External  dimensions 380mm*144mm*232mm
inside dimension Φ100mm*300mm(length )
Windows area Φ65
Installation  Method PTZ , Wall Hanging dyadic , fixed bracket ,
  Pillarbase
More Information
Manufacturer 3G Mobile
