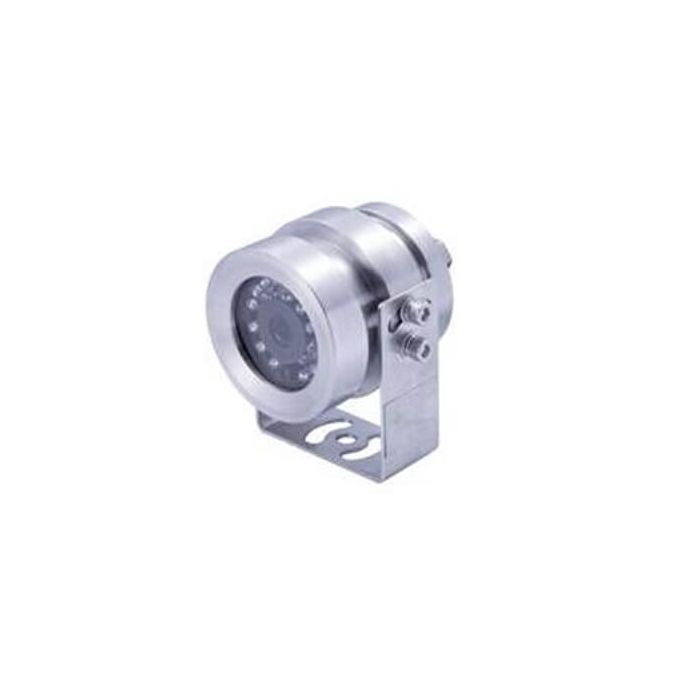

KX-EX701PWC2 mini mobile type IR IP explosion proof bullet camera

More Views

KX-EX701PWC2 mini mobile type IR IP explosion proof bullet camera

Be the first to review this product

Availability: In stock

£329.00
KX-EX701PWC2 1.3MP mini mobile type IR IP explosion proof bullet camera ATEX Ex-proof certified for use in hazardous industrial enviroments from 3G Mobile CCTV

* Required Fields

£329.00

Details

KX-EX701PWC2 1.3MP mini mobile type IR IP explosion proof bullet camera

Adopt SONY 1/3″CMOS Senor , resolution up to 1920×1080 pixel.
● High quality IR lamp , long service life , low power consumption ,irradiationdistance up to 30 meters
● Windows glass surface process by nano technology . Well light transmittance.non-stickoil/dusty /water.
● Low power consumption, the fuselage internal air convection heat dissipationdesign, can work continuously for a long time
● Special Anti-shock Engineering technologyprocessing, infrared lighting, apply to different environments
● Small volume, light weight, is aspecifically designed to meet the transport of dangerous goods vehicles orsmall area.
● Made of 304 stainless steel material. apply to strong corrosive environment

Specifications:

ducts Ex-Level ATEX
II 2G Ex d IIC T6 Gb
II 2D Ex tb IIIC IP68 T80℃ Db
Ingress Protection level IP66
Camera imaging sensor SONY1/3″CMOS
CPU TI- DSP
minimal illumination Color 0.1Lux@F1.2,BW0.01 Lux@F1.2;
Lens specification 4mm、6mm optional
Day/Night IR-CUT auto-switch
DNR 3D –DNR
Motion detecting support
Compression standard Video compression standard H.264/MJPEG
H.264 encoding type Base Line Profile / Main Profile
Compression output rate 32 Kbps~8Mbps
Image Max resolution 1920×1080
Frame rate 2 megapixel and following 25 frame(full-time), support 1~25 fps  is adjustable;
Video output Main:1920×1080,1600×1200,1280×1024,1280×960,1024×768,1280×720;Sub: 640×360,480×270,352×288,320×240,352×192,320×192,288×192,256×192;
Image setting Rotate mode, Saturation, Brightness, Contrast adjustable by  client software or web browser
Net Interface protocols ONVIF,PSIA,CGI,ISAPI,GB28181
Support protocols RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP  etc
audio interface Optional
Alarm  interface Optional
IR IR lrradiation distance 10-30M(Optional)
IR switch IR lamp Auto-open when <0 Lux
wavelength 850nm
Other specification Temputure range -40℃~60℃
Relative humidity ≤ 95%(+25°C)
Atmospheric pressure 80kpa~106 kpa
Thermostat System Optional
Supply voltage DC12V
Suitable envirment Apply to explosive gas and combustible dust environment
Material 304 stainless steel, 316, 316L for optonal
Inlet hole specifications 14mm*1.5mm  x 1
External dimensions 140mm*92mm*104mm
Installation method bracket or base installtion

Additional Information

Megapixels 1MP
trail N/A
Brand 3G Mobile
