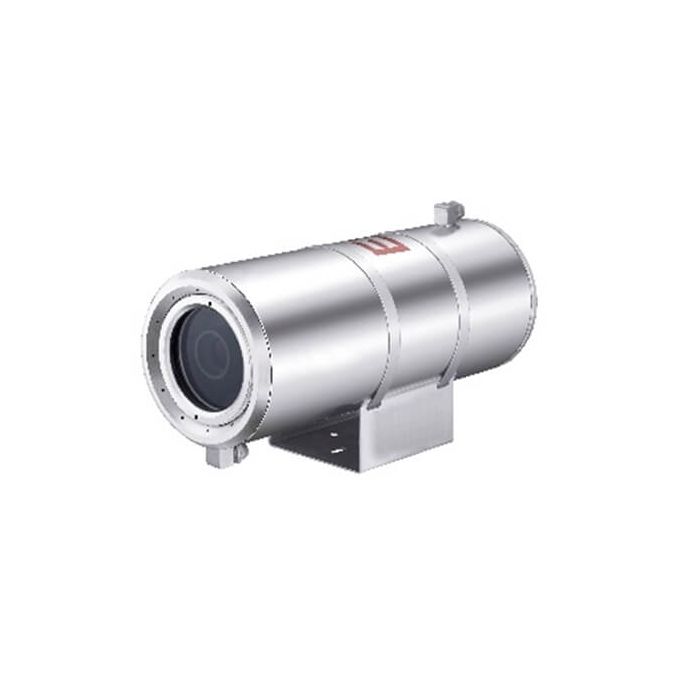

KX-EX01PWFS 200 degree centigrade high temperature Explosion proof camera housing

More Views

KX-EX01PWFS 200 degree centigrade high temperature Explosion proof camera housing

Be the first to review this product

Availability: In stock

£279.00
KX-EX01PWFS 200 degree centigrade high temperature Explosion proof camera housing for ATEX Ex-proof high temperature enviroments for installation cameras in hazardous industrial areas from 3G Mobile CCTV

Details

KX-EX01PWFS 200 degree centigrade high temperature Explosion proof ATEX Ex-proof camera housing

200 degree high temperature ATEX Certificated Stainless steel Explosion proof Housing
Double-layer structure, water & wind cooled
Use high temperature window which can up to 200 degree
Made of 304 stainless steel material. apply to strong corrosive environment

Specification:

Ex-Level ATEX
II 2G Ex d IIC T6 Gb
II 2D Ex tb IIIC IP68 T80℃ Db
Ingress Protection  level IP66
Max Temperature of Windows ≤200℃
the maxium Cooling water flow 0.82 m3/h
the working cooling water pressure >0.25Mpa
the maxium Cooling water pressure 0.6Mpa
Air pressure ≥0.4Mpa
air flow rate 10.5L/Min
Relative  humidity ≤95%(+25°C)
Atmospheric  pressure: 80kpa~106 kpa
Supply voltage DC12V /AC220V   optional
Suitable environment Apply to explosive gas and  combustible dust environment
Material 304 stainless steel(316, 316L for optional)
inlet interface specifications G3/4″ x 2
External  dimensions  351.5×153.5×182.5mm
inside dimension Φ100mm*300mm(length )
Windows area Φ65
Installation  Method PTZ , Wall Hanging dyadic , fixed bracket ,
  Pillarbase
