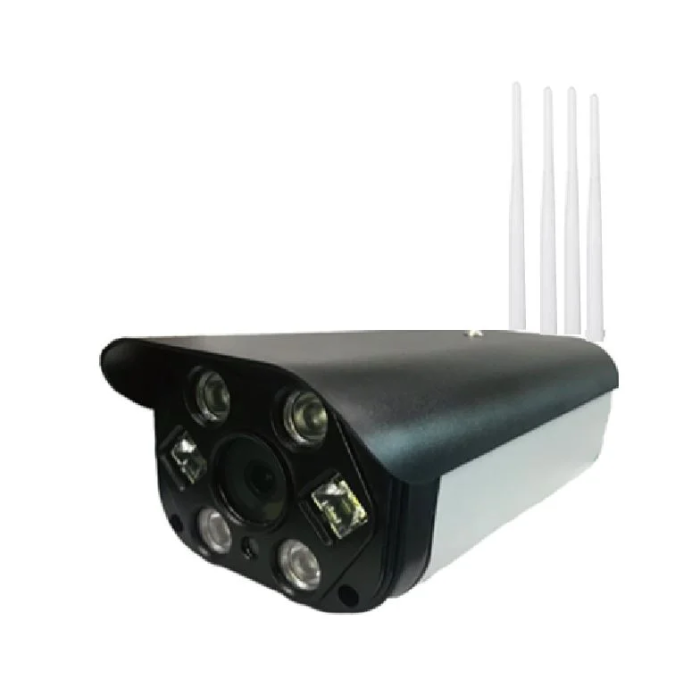

ASP-204R 5.0MP 4G /WiFi 4x zoom Taiwan Chipset MStar H.265+ AI Human Recognition & Detection RTMP VPN camera

In stock
US$240.41 US$200.34

ASP-204R 5.0MP 4G /WiFi 4x zoom Taiwan Chipset MStar H.265+ AI Human Recognition & Detection RTMP VPN camera

ASP-204R 5.0MP 4G /WiFi 4x zoom Taiwan Chipset MStar H.265+ AI Human Recognition & Detection RTMP VPN camera

  • Professional design for HD network camera, small, beautiful, and delicate.

  • Material: aluminum alloy, innovative patented heat dissipation structure, make HD camera works well under high temperature.
  • 5.0 megapixel, IMX335 1/2.8″illumination CMOS

  • Advanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment.

  • Support 512G max, TF card for storage, support Cloud storage.

  • 5.0 Megapixel HD CS lens+ IR-CUT auto switch in day and night, standard lens at 4.0mm (3.6mm,6mm,8mm,12mm, 2.8-12mm optional) fixed focus lens.

  • 6PCS IR LED, effective night vision distance is 100m, excellent performance in dark environment.

  • Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.

  • Support RTMP (Real-Time Messaging Protocol) to blend audio, video, and text together. It is also possible to have many variations of media channels. For example, it is possible to stream both MP3 and AAC audio streams with RTMP.

  • Built-in two way audio ( Mic + Speaker)

  • Support  AI Human Recognition & Detection Automatic Human Tracking

  • ONVIF protocol, provide the SDK.


AirLink's 4G security surveillance system has improved a fast, modern, secure VPN tunnel WIREGUARD help of Internet of Things secure and remote access visibility for organisations and busineses to safeguard their assests, buildings detect and interpret incidents autonomously and also provides RTMP Live Video Streaming  program.



  • Privacy Mask

  • Intelligent Detection for 1. Human 2. Car 3. Motorcycle 4. Bicycle

  • Trigger Audio / Audio File / Play times & customized audio mp3 alarm

  • RTMP protocol

  • Motion detect

  • Free CMS 64 channles

  • 4G  VPN Protocol (OpenVPN /  PPTP /  l2TP / WIREGUARD)

airlink CMS.JPG


4G camera wireguard vpn.jpg


Technical parameters:

Model:                                                ASP-204R


Imaging sensor:                                5.0MP , H.265+, Mstar SSC337DE +Sony335,1/2.8" CMOS, Starlight

Scanning mode:                               Progressive scanning

Illumination:                                     Color 0.001Lux@F1.2,black/white 0.0001Lux@F1.2

Lens:                                                  5 megapixel 3.6mm,4mm,6mm,8mm,12mm fixed focus lens optional

Day and night  switch:                      IR-CUT dual optical filters auto switch in day and night

DNR:                                                  3D-DNR

IR source:                                          6pcs IR Led

Effective night vision distance:        100meters (measured value without light condition)

4G                                                      YES

P2P                                                    YES

Waterproof                                        YES

WDR                                                   128db

S/N Ratio                                           50db

TF card slot                                        YES

Privacy mask                                      4

shutter speed                                      1/(10-10000)s

Standard compression

Image compression:                          H.264

Video compression:                           H.265+/H.265/H.264,support dual stream,AVI;32Kbps~30Mpbs

                                                            variable;support CBR/VBR


Max image size:                                 2592X1944

Frame rate:                                        Main stream:5MP 2592X1944@15pfs,4MP 2560x1440@25pfs, 3MP 2048*1536@25fps ,2.0MP 1920X1080@30fps



Interface protocol:                             HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF2.6/,Hikvision private protocol

Intelligent alarm:                               Motion detection, shadow alarm, network cable break, IP address conflict, AI Human Recognition & Detection Automatic                                                                  Human Tracking

Lightning Protection                         Power, network, POE comprehensive lightning protection, in line with national standards GB/T17626.5, the international                                                                standard IEC61000-4-5.

Features                                             Support WEB configure, support for OSD, support video transmission, support mobile surveillance, support for mobile                                                                    detection alarm center after the screen pop-up reminders and linkage; supports JPEG capture; provide perfect the SDK                                                                    development package


Basic parameter

Power input:                                       DC 12V±10%

Power consumption:                          1W (IR off) / 9.5W (IR on)   1.1W / 9.6W (IR on)

Work environment:                            -40℃ ~ 85℃, humidity is less than 95% (no condensation)

Image : 4K 8.0 MP Zoom *1 VS Zoom*4



More Information
Megapixels 5MP
Lens Normal lens
Manufacturer Airlink
