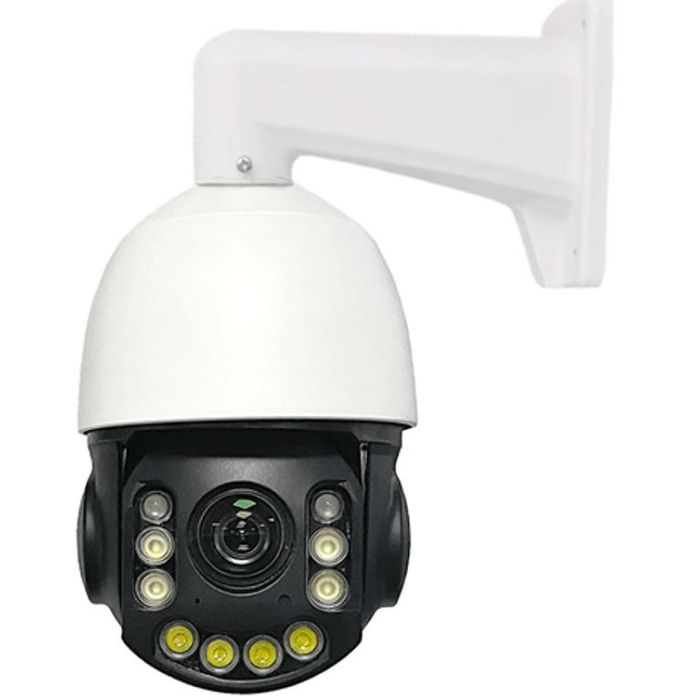

AS32-8MP-AH HaLow WiFi Camera with 8.0 MP 4K Resolution, 20x Optical Zoom - MStar Chipset
£264.00
£220.00
In stock
SKU
AS32-HP8MP-AH
Introducing the AS32-8MP-AH 1W HaLow WiFi camera, a powerful device boasting 8.0 MP 4K resolution, 20x optical zoom, and 300x digital zoom capabilities. Equipped with an MStar chipset for improved performance, it offers two-way audio, 150m infrared range, and mobile app access. Perfect for outdoor surveillance and IoT applications, this camera ensures reliable long-range connectivity.
AS32-8MP-AH 802.11AH WIFI 1W HALOW 4K 8.0 MP Zoom 20x + Digital Zoom 300x Taiwan Chipset MStar H.265+
The AirLink AS32-8MP-AH 802.11ah WiFi 1W HaLow camera system is a highly capable and sophisticated solution designed for extended-range, low-power video surveillance. This system is notable for utilizing AirLink 802.11ah wireless cameras that produce high-resolution images at 8.0 megapixels. Such clarity ensures that users can obtain sharp and detailed visuals necessary for effective monitoring.
Supporting the cameras are AirLink 802.11ah access points (APs), offered with either Yagi 20dBi or Omni 7dBi antennas. The selection of antennas enables users to customize the system to meet their specific needs, whether they require focused directionality for longer distances or wider coverage in larger areas. This flexibility proves advantageous in various settings.
A standout feature of this solution is its capacity to enable dependable, low-bandwidth video transmission over significant distances. This ability is vital in situations where conventional WiFi may struggle, such as expansive outdoor locations, agricultural environments, smart city applications, and Industrial Internet of Things (IIoT) solutions.
Additionally, the system is thoughtfully designed to ensure stable connectivity while using minimal power, making it an excellent option for applications requiring continuous operation without the need for frequent recharging or maintenance. This efficiency contributes to lowering operational costs, especially in large-scale installations.
In summary, the AirLink AS32-8MP-AH solution combines innovative technology and thoughtful design to offer an effective surveillance solution tailored for a variety of challenging environments.
Features:
-
HD 8MP resolution
-
Support 802.11ah Wi-Fi HaLow
-
4.7-94mm 20X optical zoom auto focus lens plus digital 300X digital zoom.
-
Support wired or POE network.
-
Built-in MIC and speakers, support two way audio.
-
Pan tilt rotation, horizontal:355°&vertical:90°.
-
2pcs Laser IR Leds+8pcs Smart IR Array LEDs and 8pcs White Leds, IR Distance 150m
-
Support 512G max, TF card for storage, support Cloud storage.
-
Support mobile detection alarm push to mobile phone, mobile detection recording.
-
Support mobile app remote view and playback video.
-
Free CMS 64 Channel (Central Management Software)
-
Chipset MStar
-
Support RTMP protocol
-
Support four defense modes: Intrusion detection, Enter Area detection, Leave Area detection, and Area Invasion detection
-
Voice broadcasting capability for predefined alerts or notifications
Specification
Model No. ASP32-8MP-AH
Image sensor SSC30KD + 1/2.8” Sony STARVIS IMX335 5.0M Pixels Progressive Scan CMOS
Signal System PAL/NTSC
Focal length 4.7-94 mm 20X optical zoom autofocus lens
IR LEDS 2pcs Laser IR Leds+8pcs Smart IR Array LEDs and 8pcs White LEDs,
IR Distance 150m
Aperture Range F1.5~F1.9
Rotation Speed Horizontal Rotation Speed 20°～40°/s, Vertical rotation speed 10°～20°/s；
Rotation Angle Horizontal: 0~355°, Vertical: 0~90°
Angle of View 55.3° ~ 5.8°
Min working distance 100-1500mm(Wide-Tele)
Zoom speed Approx 3s(Optical Wide-Tele)
Image Resolution
Main stream: 2592*1944 @25fps, 2592*1520 /2304*1296 /2048*1536/1080P/960P@30fps
Sub stream: 720*480D1/VGA/640*360/CIF@30fps
Min. Illumination Color： 0.001Lux@(F1.6，AGC ON) B/W：0.0001Lux@(F1.6，AGC ON)
Wide dynamic range Digital WDR，≥120dB
S / N ratio ≥50dB（AGC OFF）
AGC Auto / Manual
White balance Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Digital noise reduction DNR,3DNR
Exposure mode Auto/Manual/shutter mode（shutter range variable）
Shutter speed 1/2 - 1/10,000s
Day & Night Day / Night / External control（IR Cut Filter）
Number of preset 254
POE Standard 802.3af (optional)
PTZ function 8 Patrol、8 Pattern、Pan scan
3D Positioning Click centering, Zoom by mouse dragging
Streams Dual streams
Bitrate
CBR/VBR, bitrate： 32Kbps~10Mbps variable
Video Compression H.265+/H.265/H.264 Main Profile
Audio Compression G711
Audio Input/Output Built-in MIC and speakers support two-way audio
OSD Support zoom、camera name、time display， OSD position can be adjusted
P2P Support
Motion detect Support
Alarm linkage Support mobile phone message push
Send pictures to the mailbox
Upload pictures and videos to the FTP server,
Alarm records pictures and videos to Micro SD card,
Alarm record pictures and videos to cloud storage
Alarm trigger buzzer alarm, can customizable sound
Privacy Zone Masking 4 privacy masks programmable
Protocol TCP/IP， HTTP， NTP， IGMP， DHCP ， UDP ，SMTP ， RTP ，RTSP ，ARP ，DDNS ，DNS
Network 802.11AH WiFi HaLo
Onvif Protocol Support ONVIF 2.4
Mini SD Card Up to 512G(Optional)
Recording Mode Alarm record, timing record,
Video Playback Support APP, IE browser, PC client play and download the video
Power Supply 12V 2A DC
Maximum power 12W
Power Conversion 88%
Working Temperature -20°C ~60°C, Humidity≤90%RH(Unsupport-condensing)
Waterproof level IP66
Product Size 256mm×136mm×230mm(L×W×H)
Product weight 1.4 kg
Package Size 285mmx175mmx285mm(L×W×H)
Package weight 2.0 kg
| Megapixels | 8MP |
|---|---|
| Watts | 1W |
| Lens | Normal lens |
| Camera size | 5" dome |
| Manufacturer | Airlink |
