24 port 100Mbps switch with 2G combo

In stock
US$452.09 US$376.74
All 24 10/100M ports are PoE inline power port Two Gigabit electrical interface is used for high-speed connection Two Gigabit optical interface is used for high-speed connection Easy-to-use WEB-based graphical configuration and management

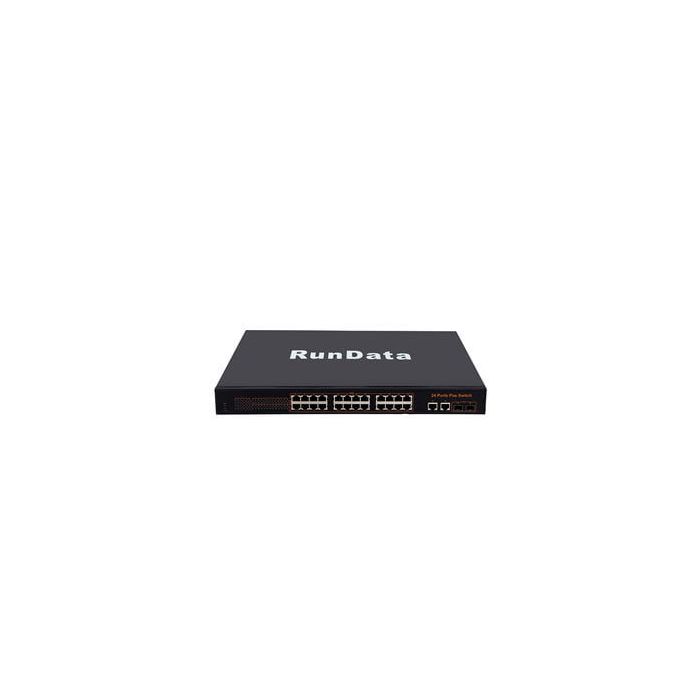

PS1024 10/100Mbps multifunctional smart switch, with 2 Gigabit ports, 2 Gigabit optical interfaces and 24 PoE ports
Key Features:
All 24 10/100M ports are PoE inline power port
Two Gigabit electrical interface is used for high-speed connection
Two Gigabit optical interface is used for high-speed connection

The full 24-port PoE solutions, plus a simple browser-based management
PS1024S Smart Switches fill the gap between non-network management switches and full network management switches. PS1024S Smart Switch Series is specifically designed for the growing SMEs. It conducts a comprehensive monitoring on the network, but not so expensive and complex as full Layer 2/3 network management switch. PS1024S, as PoE Smart Switch, transfers power and data on all 24 ports by the IEEE 802.3af agreement. In addition, PS1024S also provides visual web-based management tool, which can simply and fast expand the configuration, and make the wireless access points, VoIP phones and IP-based surveillance cameras work in an ideal state. The switch has many advanced features, such as access control list (ACL), 802.1x port authentication, enhanced QoS, port rate limiting and IGMP snooping. Also it continues to promote the growth of small and medium-sized enterprise networks and ensures the scalability and reliability. twenty-four 10/100Mbps ports, two 10/100/1000Mbps electrical interfaces and the combination of the two optional fiber Gigabit ports (copper/Small Form Factor Pluggable (SFP) slots), enabling the growing businesses, classrooms and the working groups to benefit from superior performance and keep up with the demand for network expansion. The series of high-performance switch is a wire-speed non-blocking system, 12.8Gbps switching capacity ensures the maximum data throughput. All 28 RJ-45 ports are auto-negotiated to the highest rate and support Auto Uplink ? technology, ensuring the proper connection.
Comprehensive and flexible Power over Ethernet (PoE)
The maximum output power of 390W enable users to connect up to 24 Ethernet or Fast Ethernet devices and up to 24 IP-based 802.3af devices power supply. PoE optimizes the installation and power management of wireless access point, VoIP phones and IP surveillance camera. PoE (IEEE 802.3af) reduces time and cost in installation for many new-type IP devices. Using one standard CAT5 cable can free your wireless AP and IP camera from power line. If you use UPS to supply power for your switch, your all PoE devices will obtain continuous power supply.
Senior safety
This series of switches for small and medium-sized enterprises provides more advanced security features, including:
l 802.1x used for authentication
l MAC address-based ACL is used to allow or block access
Product name
24-port multi-functional intelligent network line-powered switch
Order No.
Network protocols and standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- IEEE 802.3x Flow Control
- IEEE 802.3af Power over Ethernet
Power Specifications
- Power consumption: maximum 390W
- PoE Power: 360W
- Voltage: 100 - 240 VAC, 50 -60 Hz
Network interface
- 24 10/100M ports (MDI / MDIX adaptive); ports with PoE features (24)
- 2 10/100/1000M Gigabit copper RJ45 ports (MDI / MDIX adaptive)
- 2 SFP GBIC fiber module slots
Physical Specifications
- Dimensions: 440 x 350x 43 mm
- Weight: 5.5 kg
Electromagnetic radiation
- CE mark, commercial
- FCC Part 15 Class A
- VCCI Class A
- C-Tick
Environmental norms
- Operating Temperature: 0 ° - 50 ° C (32 ° - 104 ° F)
- Storage Temperature: -20 ° - 70 ° C (-4 ° - 158 ° F)
- Operating Humidity: Maximum relative humidity 90% without condensation
- Storage humidity: 95% maximum relative humidity, non-condensing
- Working height: up to 10,000 feet (3,000 meters)
- storage altitude: the largest 10,000 feet (3,000 meters)
- Each device: power light
- Each device: WEB indicator
- Per port (10/100 and Gigabit): connection speed indicator
- Per PoE port: PoE power-on LED
Radiation / electromagnetic immunity,
- EN 55024
- CE mark, commercial
- cUL 60950 (Listed) / EN60950
Management standards
- IEEE 802.1Q static VLAN (up to 128)
- IEEE 802.1p Class of Service (CoS)
- 802.3ad link aggregation (manual or LACP)
- 802.1D Spanning Tree Protocol
- SNMP v1/v2/v3
- RFC1213 MIB II
- RFC 1643 Ethernet Interface MIB
- RFC 1493 Bridge MIB
- RMON Group 1,2,3,9
- RFC 2131 DHCP client
-IEEE 802.1x port-based security access control function
- port and MAC address binding function
-based broadcast, multicast and unknown destination address unicast packet flow control function
- IGMP Snooping v1/v2
- Based on the entry of the port (ingress) / export (egress) traffic policies
- port mirroring settings
- WEB browser configuration management
- configuration file upload / download
- password protection and limit the range of IP addresses device management
- Radius support
- TACACS + support
- Syslog-software upgrade
Performance Specifications
- Forwarding modes: Store and forward
- Bandwidth: 12.8 Gbps (non-blocking)
- network latency: 100 Mbps to 100 Mbps transmission, storage and forwarding mode under a 64-byte frame delay is less than 20 microseconds
- Buffer memory: 3Mb per system
- Addressing: 48-bit MAC address
- the address database size: 8,000 per system MAC address
- Mean failure interval (MTBF): 300,000 hours (about 34 years)
User interface
- through WEB browser interface management
1 year
Package Contents
- PS1024S 24-port multi
- functional intelligent network line-powered switch rubber feet
- the power cord - rack kit
- Installation guide
- Warranty / support information card
