Octocopter BAT X900 aircraft, aluminium case, 9 channel WFT09 remote control, 1500mAh Lipo batterry, battery alarm & Imax B6 charger

SKU
BAT X900A
In stock
US$3,921.84 US$3,268.20
-
+
Overview
Octocopter BAT X900 aircraft, aluminium case, 9 channel WFT09 remote control, 1500mAh Lipo batterry, battery alarm & Imax B6 charger from 3G Mobile CCTV
Octocopter BAT X900 aircraft, aluminium case, 9 channel WFT09 remote control, 1500mAh Lipo batterry, battery alarm & Imax B6 charger

Functions and features:

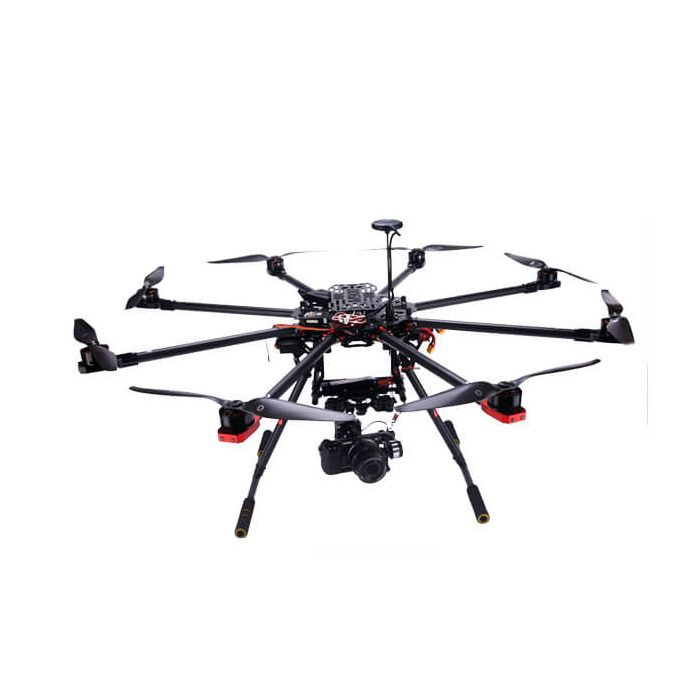

BAT X900 is a professional aerial photography octocopter aircraft for application. Fuselage adopts folding design, easy to carry, quick and flexible to operate, safe and stable to use, etc. It has been assembled and adjusted well in factory, users only need simple installation and can enjoy it. Fuselage integrates battery installation board, power divider, folding arms, GPS folding bracket, flight control LED lights and quick release landing gear components. Motor base integrates high-speed ESC. Landing gear adopts in-built shock absorption components, folding gear, gimbal installation gear and image transmission installation place. Modular design can realize flexible collocation of the whole aircraft system and satisfy various of application-level aerial photography demands.

Specification

Brief Introduction

BAT X900 is a professional aerial photography octocopter aircraft for application. Fuselage adopts folding design, easy to carry, quick and flexible to operate, safe and stable to use, etc. It has been assembled and adjusted well in factory, users only need simple installation and can enjoy it.  Fuselage integrates battery installation board, power divider, folding arms, GPS folding bracket, flight control LED lights and quick release landing gear components. Motor base integrates high-speed ESC. Landing gear adopts in-built shock absorption components, folding gear, gimbal installation gear and image transmission installation place. Modular design can realize flexible collocation of the whole aircraft system and satisfy various of application-level aerial photography demands.

Working Modes:

  1. 1). Manual Mode
  2. 2). GPS Auto Hovering Mode
  3. 3). Auto Navigation Mode
  4. 4). Auto Back Landing Mode

Technical Parameters :

Fuselage

Diagonal Motor Wheelbase

920

mm

Arm Length

422

mm

Center Board Diameter

230

mm

Max Spread Size

1260 x 1260 x 535

mm

Fuselage Weight (motors, ESC, propellers and flight control included)

2720

g

Landing Gear Size(gear down)

348 x 400 x 350

mm

Landing Gear Weight

630

g

System

Flight Control

YS-X4 V2 standard

Power

Motor

C3510  KV580

Propeller

1355  3K carbon fiber

ESC

36S  25A

Flight

Aircraft Weight

3.35kg

Take Off Weight

≤7.7kg (available to Sony, GH2, GH3, etc.)

Battery

LiPo 6S 10000mAh~20000mAh  10~25C

Flight Time(no payload)

31min (6S 15000mAh LiPotake off weight 5.05kg)

Working Temperature

540℃

Wind Resistance

<5.4m/s (6.5kg take off weight

More Information
Lens Normal lens
Manufacturer X-Viki
