LTL Acorn LTL-5310WA 12MP IR 940NM 100 Degree Wide Angle New Version Digital TrailCamera

SKU
LTL-5310WA
In stock
US$149.76 US$124.80
-
+
Overview

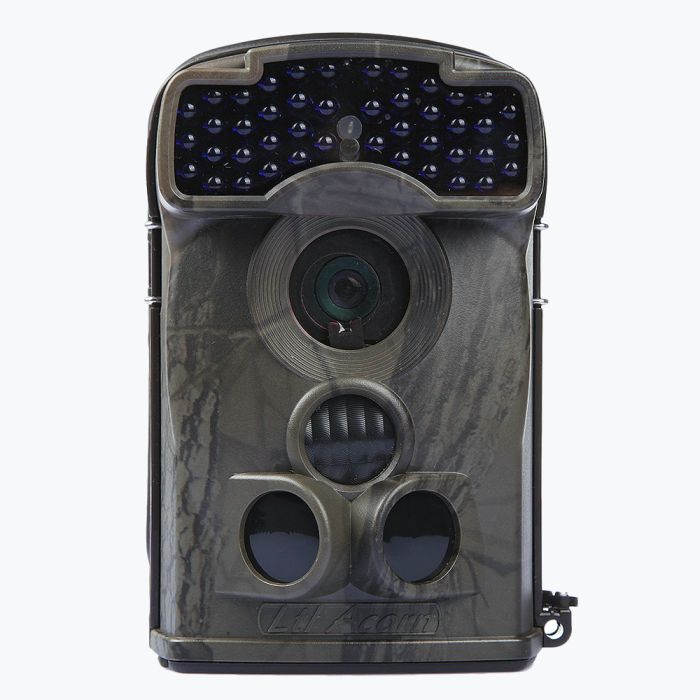

LTL Acorn LTL-5310WA 12MP IR 940NM 100 Degree Wide Angle New Version Digital Trail Camera from 3G Mobile CCTV

LTL Acorn LTL-5310WA 12MP IR 940NM 100 Degree Wide Angle New Version Trail Security Camera

he Ltl Acorn 5310WA offers 12 MP still pictures, 1080 resolution video with sound with 100 degree wide angle, a built-in 2.36” viewing screen (on the back of the front half of the camera), 0.8s trigger speed, time-lapse mode, up to 18m flash range with 940nm no glow LEDs, 44 LEDs, multi-shot mode up to 3 photos per detection and/or video up to 60s. Takes 8 AA batteries and maximum 32GB SD card.

This camera is just like the 5210A but with more LEDs for greater night-time illumination.

The two-part design of this camera can be very useful, allowing you to view the screen, change the SD card and batteries without unstrapping the back from the tree.

44 Infrared Leds (this is the 940nm covert version)
Weatherproof Casing (IP54 rated)
Lens Angle of View – 55 degrees approximately
1 Central Motion Sensor
2 Angled “Prep” Motion Sensors
2 Accurate Timers
Time & Date Stamping
Motion/Temperature Change Sensors
Holds 8 AA Batteries (at least 4 required, not supplied, 2500mA or above required)
Video Length Programmable

Specifications:

Image Sensor   5 Mega Pixels Color CMOS

Max. Pixel Size  2560x1920

Lens    FOV=100°;Auto IR-Cut

IR Flash  65 Feet/20 Meters

LCD Screen  48x35.69mm(2.36");480(RGB)*234DOT;16.7M Color

Operation  Keypad 6 Keys

Picture Size  5MP/12MP/1.3MP =2560X1920/4000X3000/1280X960;

Video Size  640x480,320x240;30fps;1280x720;20fps

PIR Sensitivity High/Normal/Low

PIR Sensing Distance 65ft/20m(Below 77°F/25°C at the Normal Level)

Prep PIR Sensing Angle  Left and right light beams form an angle of 100°; Each lens covers 10°

Main PIR Sensing Angle  35°

Operation Mode  Day/Night

Trigger Time  0.6 Second(When using the 2G SD card)

Trigger Interval 0sec. - 60min;Programmable

Shooting Numbers 1~3

Video Length 1-60sec.;Programmable

Camera +Video First take Picture then Video

Playback Zoom  In 1~16 Times

Time Stamp  On /Off; Include serial no., temperature and moon phase

Timer  On /Off; Timer Set

Password  4-Digit Numbers

Device Serial No. 4 digits and 26 alphabets set by yourself

Periodic Shot Time Laps 1 Second ~ 24Hours

Time Lapse 1 Second ~ 24 Hours

Power Supply 4xAA; Expandable to 8xAA (With additional battery box)

External DC Power Supply Plug Size:4.0x1.76 ~ 12V (1 ~2A)

Stand-by Current 0.4mA

Stand-byTime 3~6 Months(4xAA~ 8xAA)

Auto Power Off Auto power off in 2 minutes while no keypad controlling

Power Consumption 150mA (+650Ma when IR LED lights up)

Low Battery Alarm 4.2~4.3V

Interface  TV out(NTSC); USB; SD Card Slot; 6V DC External

Mounting  Strap; Tripod Nail

Waterproof  IP54

Operation Temperature -22~+158°F/-30 ~+70°C

Operation Humidity 5% ~ 95%

Certificate  FCC & CE & RoHS

More Information
Megapixels 12MP
Lens Wide angle lens
Trail cameras No wireless
Manufacturer LTL Acorn
