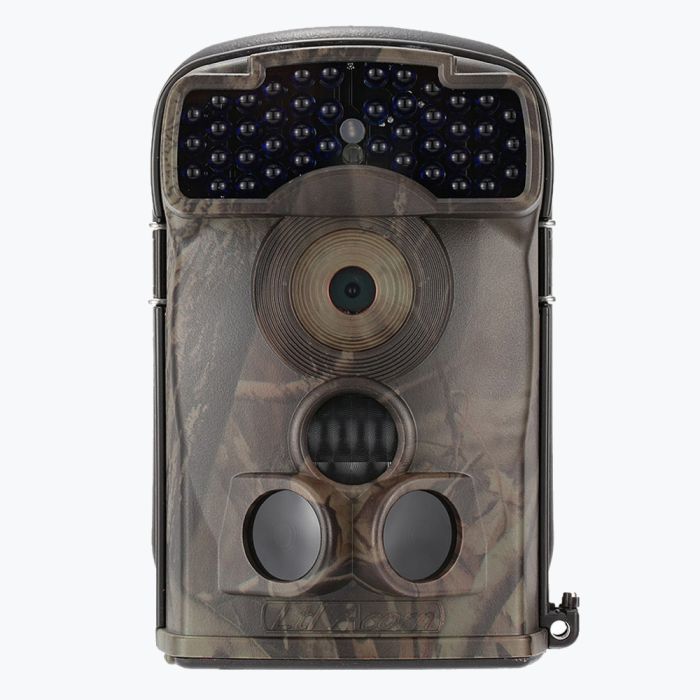

LTL Acorn LTL-5310A 12MP with 940NM LED Trail Security Camera

SKU
LTL-5310A
In stock
US$148.20 US$123.50
-
+
Overview

LTL Acorn LTL-5310A 12MP with 940NM LED Scouting Game Security Trail Camera from 3G Mobile CCTV

LTL Acorn LTL-5310A 12MP with 940NM LED  Trail Security Camera

The Ltl Acorn 5310A offers 12 MP still pictures, 1080 resolution video with sound, a built-in 2.36” viewing screen (on the back of the front half of the camera), 0.8s trigger speed, time-lapse mode, up to 18m flash range with 940nm no glow LEDs, 44 LEDs, multi-shot mode up to 3 photos per detection and/or video up to 60s. Takes 8 AA batteries and maximum 32GB SD card.

This camera is just like the 5210A but with more LEDs for greater night-time illumination.

The two-part design of this camera can be very useful, allowing you to view the screen, change the SD card and batteries without unstrapping the back from the tree.

Ltl Acorn 5310A Trail Camera Specifications & Features:
44 Infrared Leds (this is the 940nm covert version)
Weatherproof Casing (IP54 rated)
Lens Angle of View – 55 degrees approximately
1 Central Motion Sensor
2 Angled “Prep” Motion Sensors
2 Accurate Timers

Specifications:

Image Sensor :    5 Mega Pixels Color CMOS
Lens :    F=2.4; FOV=55°; Auto IR-Cut
IR flash:   940nm;850nm
LCD Screen:   (2.4"); 480(RGB)*234DOT; 16M Color
Operation Keypad:   6 Keys
Memory:   SD Card (8MB ~ 32GB)
Picture Size:   12MP(4000X3000) 5MP(2560X1920)1.3MP(1280X960)
Video Size:   1920x1080:15 fps; 1280x720/640x480/320x240: 30fps
PIR Sensitivity:   High/Normal/Low/Off
PIR Sensing Distance:   18m(Below 77°F / 25°C at the Normal level)
Prep PIR Sensing Angle:    Left and right light beams form an angle of 100°; Each lens covers 10°
Main PIR Sensing Angle:   35°
Operation Mode:   Day/Night
Trigger Time:   0.8 Seconds
Trigger Interval:   0 Sec ~ 60 Mins; Programmable
Shooting Numbers:   1~3
Video Length:   1~60 Secs; Programmable
Camera + Video:   First take photo then video.
Playback Zoom In:   1~16 Times
Time Stamp:   On/Off; Including serial No., temperature and moon phase;date and time
Timer1:   On/Off; Programmable;
Timer2:   On/Off; Programmable;
Password:   4-digit Numbers(0~9)
Device Serial No.:   4 digits and/or alphabets(0~9, A~Z);
Time Lapse:   On/Off; 0 Sec ~ 23 Hrs 59 Mins 59 Secs; Programmable
SD Cycle:   On/Off;
Power Supply:   8XAA
External DC Power Supply:   Plug Size: 4.0mmx1.7mm;6 ~ 12V (2 ~ 1A)
Stand-by Current:   80~95uA
Stand-by Time:   1 year(8xAA)
Auto Power Off:   Auto power off in 3 minutes if no keypad input
Power Consumption:   180mA (+620mA when 940nm IR LED lights up).180mA (+520mA when 850nm IR LED lights up).
Interface:   TV Out ; Micro USB; SD Card Slot; 6V DC External
Mounting:   Strap; Tripod
Ingress Protection:   IP54
Operation Temperature:   -49°F (-45°C) ~ 158°F (70°C)
Operation Humidity:   5% ~ 95%
Certificate:   FCC & CE & RoHS

More Information
Megapixels 12MP
Lens Normal lens
Trail cameras No wireless
Manufacturer LTL Acorn
