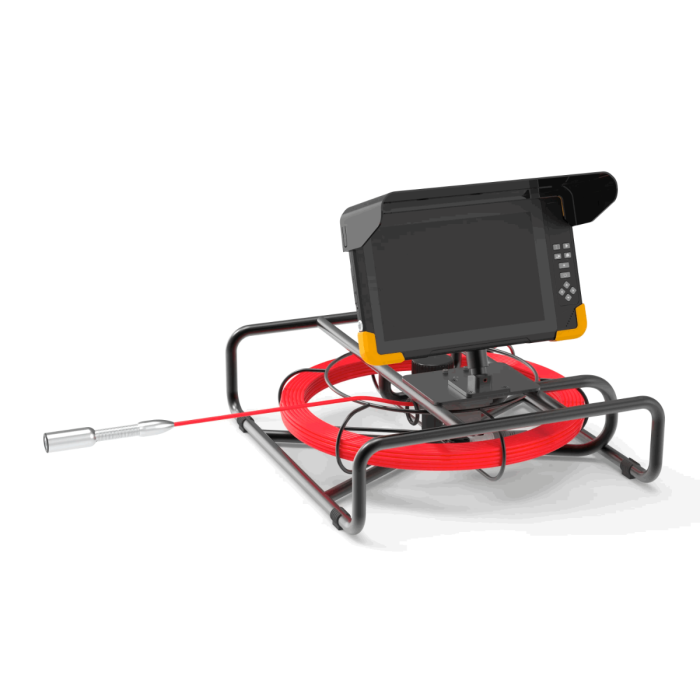

PD160-23 10" Monitor 4MP 23MM HDR Drain Camera Self leveling Industrial Sewer Borewell Pipe Manhole Inspection Camera 30m Push Rod Cable

HDR Drain Camera System Self-level head with Sonde, Meter counter, Inner Keyboard for notes

*2MP Sony Sensor Resolution:1920*1080px
*View angle:180°view angle
*Light source: 12 LED, brightness is adjustable via monitor *28mm diameter camera with 2 skids, 40mm and 90mm
*Self-level head with 512hz Sonde
*Cable Reel Material: Stainless steel, with brake and meter counter
*Cable material: Glass fiber, default 30M cable, Diameter:5.0mm
*Monitor bracket: Removeable from the cable reel
*4colors removable Rubber Corner protectors
*10.1 inch touch screen resolution:1280*800pix, IP66
Video input:HD 4K,2K,1080P,720P, 480P AHD,CVBS video input Video Output: HDMI 1080P
Support 4K,2K recording;12MP photo and photo notes.
Support 10 times zoom, image flip, inner keyboard to edit photos, playback, file lock with password
Video compression format: H.265
Max Storage: up to 256GB TF card, default 64GB
Compressed video and audio are synchronous
2*6200mAh exchangeable and removable Li-battery
Support 12 Voltage power output for camera
WiFi Wireless transmission and view on mobile, via APP

Description of pipe sewer camera system

PD160-23MM Pipe Inspection Camera is a professional sewer camera system that was designed for Contractors and Plumbers to work smarter, get the job done faster, and provide a higher resolution display screen for viewing pipes. High-quality product you can trust for your daily operations to fulfill your client’s obligations with its advanced sewer camera inspection system used for inspecting many of today’s industries, environments, and applications that include Residential Plumbing, Municipal Collection Systems, Industrial Pipelines, and other Commercial Applications.

Usage of the pipeline drain inspection  camera :

1. Tubular/Water Pipe Cleaning: helps to clean, rust, corrosion, dust and cracks after the pipe is inspected.

2. Shipbuilding industry: used to inspect boilers, steam turbines, diesel engines, and pipelines.

3. Industrial machinery: used to check for engine scars or wear, gearboxes, and hydraulic systems, greatly reducing downtime.

4. Electronics, electronics industry: used to confirm the wiring status of the product, check the working condition of the machine, etc

4MP 23MM camera self-level+Meter counter  + 30M push cable+  professional cable reel + 10inch  4K monitor

10inch 4K Recording Touch Screen 2MP 23MM Drain Camera  Industrial Drain Sewer Pipe Inspection Camera

Main points for pipeline inspection camera

*4MP Sony Sensor Resolution:1920*1080px
*View angle:120°view angle
*Dynamic Range:90db
The high dynamic range (HDR) image sensor expands the camera’s dynamic range, allowing a greater ratio of bright and dark areas to be displayed in the same image at the same time without reducing visibility. The result is superior clarity and detail, allowing you to quickly and easily identify problem areas.
*Light source: 12 LED, brightness is adjustable via monitor
*28mm diameter camera with 2 skids, 40mm and 90mm good for inspecting 30-150mm diameter pipes

*Cable Reel Material: Stainless steel, with brake
*Cable material:Glass fiber, 30m, Diameter:7.5mm

*Monitor bracket: Removeable from the cable reel
*4colors removeable Rubber Corner protectors
*10.1 inch touch screen resolution:1280*800pix, IP66
Video input:HD 4K,2K,1080P,720P, 480P AHD,CVBS video input
Video Output: HDMI 1080P
Support 4K,2K recording;12MP photo and photo notes.
Support 10 times zoom, image flip, inner keyboard to edit photos, playback, file lock with password
Video compression format:H.265
Max Storage: up to 256GB TF card, default 64GB
Compressed video and audio are synchronous
12400mAh exchangeable and removeable Li-battery
Support 12 Voltage power output for camera
WiFi Wireless transmission and view on mobile,via APP

10inch 4K Recording Touch Screen 2MP 28MM HDR Drain Camera Self level 512hz  Industrial Drain Sewer Pipe Inspection Camera

Specifications for Pipeline inspection system
