DS100C-34 100m 5.0mm cable Deep Water Well 10.1" Screen 34mm Head Sewer Pipe Drain Inspection Camera With Meter Counter

SKU
DS100C-34
In stock
US$1,409.70 US$1,174.75
-
+
Overview

DS100C-34 100m 5.0mm cable Deep Water Well 10.1" Screen 34mm Head Sewer Pipe Drain Inspection Camera With Meter Counter

DS100C-34 100m 5.0mm cable Deep Water Well 10.1" Screen 34mm Head Sewer Pipe Drain Inspection Camera With Meter Counter

5MP Drain Camera System with 100m 5.0mm Soft Cable

* 5MP Sony Sensor Resolution:2560*1944px *View angle:120°view angle
* Light source: 12 LED, brightness is adjustable via monitor
* 34mm diameter camera,L:66mm
* IP68 waterproof, can work underwater max 200m *Cable Reel Material: Stainless steel, with brake and meter counter
* Monitor: Removeable from the cable reel
* 4 colours removable Rubber Corner protectors
* 10.1 inch touch screen resolution:1280*800pix,IP66 Video input:HD 4K,2K,1080P,720P, 480P AHD,CVBS video input
Video Output: HDMI 1080P
Support 4K,2K recording;12MP photo and photo notes. Support 10 times zoom, image flip, inner keyboard to edit photos, playback, file lock with password
Video compression format: H.265
Max Storage: up to 256GB TF card, default 64GB Compressed video and audio are synchronous 2*6200mAh exchangeable and removable Li-battery Support 12 Voltage power output for camera
WiFi Wireless transmission and view on mobile, via APP



Overview

100m or 200m cable options with 5.0mm cable Deep Water Well 10.1" " Screen 34mm Head Sewer Pipe Drain Inspection Camera With Meter Counter

Model:  DS200C-34  for 200 meter cable option

A 5MP 34MM  camera   +  100M (5.0MM) Cable  +  Cable Reel with brake and meter count + 4K 10inch monitor



 100m 200m 5.0mm cable Deep Water Well 10.1" " Screen 34mm Head Sewer Pipe Drain Inspection Camera With Meter Counter

5MP Pipeline Inspection Camera:

* 5MP Sony Sensor Resolution:2560*1440px
* View angle:120°view angle
* Light source: 12 LED, brightness is adjustable via monitor
* 34mm diameter camera,L:66mm
* IP68 waterproof, can work underwater 100m

100m 200m 5.0mm cable Deep Water Well 10.1" " Screen 34mm Head Sewer Pipe Drain Inspection Camera With Meter Counter



5MP  100m AHD Plumping  Camera 10inch 4k  Deep Water Well Pipeline Inspection System With Meter Counter


There are other models with other styles of underwater inspection cameras for options, if have any questions, please contact us.

100m 200m 5.0mm cable Deep Water Well 10.1" " Screen 34mm Head Sewer Pipe Drain Inspection Camera With Meter Counter

* Monitor: Removeable from the cable reel
* 4 colours removable Rubber Corner protectors
* 10.1-inch touch screen resolution:1280*800pix,IP66
Video input: HD 4K,2K,1080P,720P, 480P AHD, CVBS video input
Video Output: HDMI 1080P
Support 4K,2K recording;12MP photo and photo notes.
Support 10 times zoom, image flip, inner keyboard to edit photos, playback, file lock with password
Video compression format: H.265
Max Storage: up to 256GB TF card, default 64GB
Compressed video and audio are synchronous
2*6200mAh exchangeable and removable Li-battery
Support 12 Voltage power output for camera
WiFi Wireless transmission and view on mobile, via APP



5MP  100m AHD Plumping  Camera 10inch 4k  Deep Water Well Pipeline Inspection System With Meter Counter

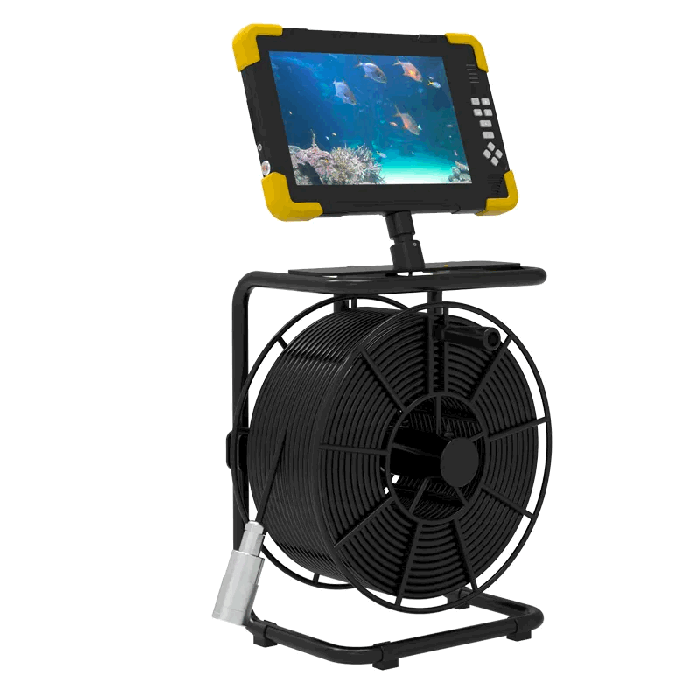

Detail Pictures of the 5MP Deep water Pipeline inspection system

100m 200m 5.0mm cable Deep Water Well 10.1" " Screen 34mm Head Sewer Pipe Drain Inspection Camera With Meter Counter100m 200m 5.0mm cable Deep Water Well 10.1" " Screen 34mm Head Sewer Pipe Drain Inspection Camera With Meter Counter100m 200m 5.0mm cable Deep Water Well 10.1" " Screen 34mm Head Sewer Pipe Drain Inspection Camera With Meter Counter100m 200m 5.0mm cable Deep Water Well 10.1" " Screen 34mm Head Sewer Pipe Drain Inspection Camera With Meter Counter

Pipe cameras







Here are some of the main ways a pipe inspection cameras can save time and money for inspectors:

Faster inspections. The camera can quickly traverse long sections of pipe to inspect them. This is much faster than manually inspecting pipes through excavation or accessing multiple access points. Faster inspections mean inspectors can complete more inspections in less time.

Fewer excavations are needed. Since the camera is inserted through existing access points like manholes or cleanouts, excavating to access buried pipes is rarely needed. This saves the time and cost of digging up and repairing infrastructure.

Less equipment and resources required. Pipe inspection cameras only require a camera control system and cables. This is less equipment than needed to excavate, shore up and manually enter pipes. It also requires fewer inspectors and safety equipment.

Permanent video records reduce re-work. The video documentation from the inspections provides a permanent reference for inspectors to use for years without needing to re-inspect the pipes. This avoids duplicating work that has already been done.

Issues detected earlier. Problems inside pipes can often be detected earlier with video inspections before they become major structural issues. Identifying issues early on allows for more affordable and fewer emergency repairs. This can save money in the long run.

Consistent inspections. The camera allows the same inspector or team to complete all the inspections, ensuring consistent reviews and application of standards. This accurate detection of issues leads to the best use of resources for rehabilitation projects.

Small problems found. Even minor issues like small cracks, leaks, or obstacles that may not visually manifest on the surface can be detected with a pipe inspection camera before causing bigger and harder-to-diagnose issues. Minor diagnoses and repairs are typically less expensive. So in summary, using a push rod pipe inspection camera can result in significant time and cost savings for inspectors through reduced work needs, avoidance of expensive problems, more efficient issue detection, and optimized use of resources. Let me know if you have any other questions!
