CWT5002-1 MODBUS GPRS RTU GSM alarm and controller 32 registers, 4DI, 4DO, 4AI, GPRS, SMS control

SKU
CWT5002-1
In stock
US$372.84 US$310.70
-
+
Overview
CWT5002-1 MODBUS GPRS RTU GSM alarm and controller 32 registers, 4DI, 4DO, 4AI, GPRS, SMS control

CWT5002-1 MODBUS GPRS RTU GSM alarm and controller 32 registers, 4DI, 4DO, 4AI, GPRS, SMS control





 CWT5002 modbus io module



Advance features

1. Adopted highly integrated industrial CPU

2. Easy used GUI configure software

3. Reliable performance with built-in double watchdog

4. Low maintenance, 24×7 operation

5. Support ring call when alarm

6. Temperature sensor (optional)

7. Internal battery and providing power cut off alarm



CWT5002 modbus io module

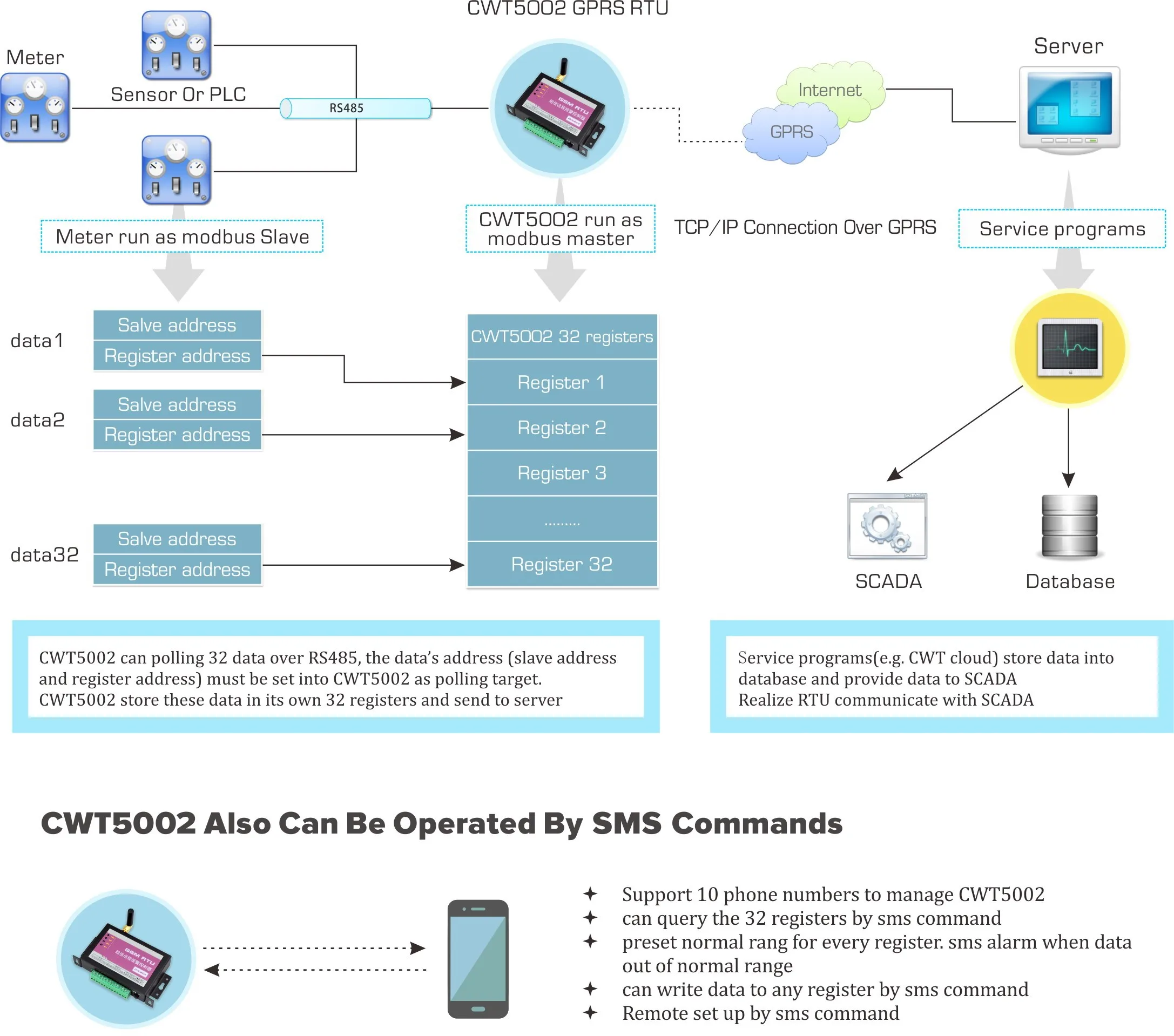

Modbus feature

1. Modbus RTU protocol on RS232 or RS485, monitor modbus slave

2. Read or write 32 registers (coil or input registers) on Modbus via GPRS or SMS

3. Upload data to server when coils are triggered

4. Can preset normal range for input registers; upload data to server when above the normal range

5. Support SMS operation (read or write registers)





GPRS feature



1. Support connects 4 servers, the servers must connect internet and have static public IP address or     Dynamic Domain name



2. GPRS Transmission base on TCP/IP



3. Support modbus TCP protocol





4 digital inputs feature

1. Upload data when inputs are triggered

2. Upload input status on schedule

3. Can be reuse as pulse counter input

4. SMS alarm when inputs are triggered

5. NO or NC type can be preset

6. Configurable for alarm and recover sms

7. Remote query inputs status



4 relay drivable outputs feature

1. Multiple output type can be preset

2. Remote On/Off/Pulse outputs via GPRS or sms

3. Configurable for pulse time

4. Remote query outputs status via GPRS or sms

5. Outputs can be activated by alarm or call

6. Outputs can be activated on schedule



4 analog inputs feature

1. Can preset normal range for AD input, upload data to server when above the normal range.

2. Current values can be query by server or sms

3. Configurable for alarm and recover SMS

4. Configurable for alarm ensure time

5. Configurable for alarm delay time

6. Support offset and gain

CWT5002 modbus io module



Specifications

DC Power supply: 12-24V DC (Standard adapter: DC 12V/1.5A)

Power consumption: 12V input Max. 150mA/Average 50mA

Frequency range: Quad-frequency 900/1800/850/1900HMz

SIM Card: Supporting 3V SIM Card

Antenna: 50 Ω SMA Antenna interface

Serial port: Selectable RS-232/485

Temperature range: -30°C ~ +70 °C

Humidity range: Relative humidity 95%

Digital Input: 4 digital inputs (Dry contact)

Output: 4 drivable relay outputs (open-collector outputs)

Output drive voltage: Equal to input DC voltage

Output drive power: Drive voltage ≤35V, drive current ≤500mA

Exterior dimension: 95×63×25mm

Weight: 256 g



Screenshot of Program Software:

CWT5002 modbus io moduleCWT5002 modbus io moduleCWT5002 modbus io module
