Meitrack TC68S GPS plug and play vehicle tracking device

SKU
TC68S
In stock
US$123.24 US$102.70
-
+
Overview

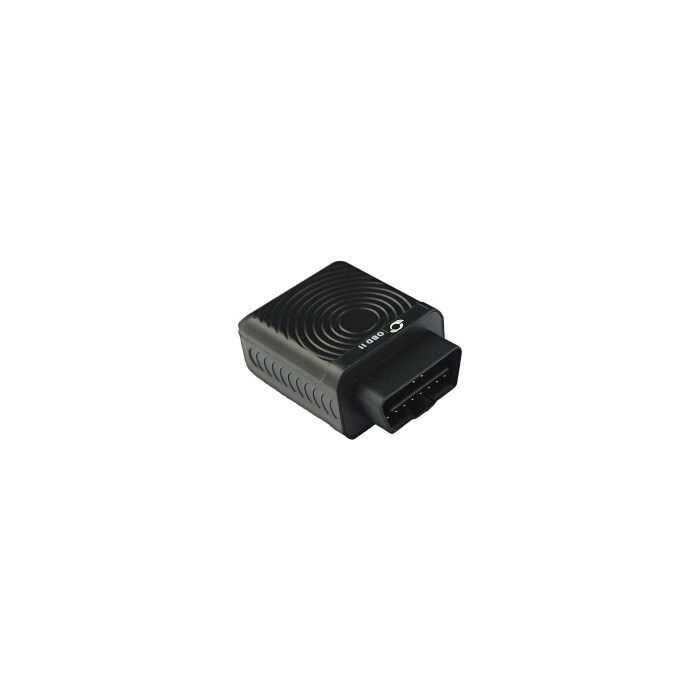

Meitrack TC68S GPS OBDII plug and play vehicle tracking device

Meitrack TC68S GPS OBDII plug and play vehicle tracking device

TC68S is a plug and play GPS vehicle tracker which has friendly plug and play installation without complicated cabling.

Features

PLUG AND PLAY

48 CHANNELS

GPS SENSITIVITY: -163dB

LATEST GPS SIRF-STAR IV CHIPSET

Friendly install withoutcomplicated cable

More accurate and faster to get signal from satellite.

TC68S_1
TC68S_3

REPORT SMS WITH GOOGLE MAPS LINK
GPS/GSM (LBS) TRACKING
8M GPS LOGGING

Not only report latitude and longitude, but also link for quick access to Google maps on your smart phone.
Dual tracking mode helps you track by GSM station while no GPS signal.
Monitor and manage the vehicle by historical report. It can record the data for 6 months by 3 minutes interval.

LISTEN-IN

Keep your ear to real situation

TC68S_4
TC68S_5

MEITRACK FAMILY
GPS TRACKING SYSTEM MS02

GPS/GSM (LBS) tracking
I/O status dynamic display
Polygon Geo-fence
Group command-sending
Route deviation alarm
More than 20 language versions
Map: OSM, Google, Bing, MapABC

APP for smart phone

More Functions

Tracking
On demand, time interval, distance interval

Report

Mileage, alarm, history, speed, parking, sensor, RFID, input, picture

OTA

Upgrade firmware over the air

Alarm

SOS, Geo-fence, GPS blind spot, low battery, speeding, tow, external power cut

Specifications

Items Specifications
Dimensions 69.8*51.8*31.8 mm
Weight
60g
Input Voltage
DC 12V/1A
Back-up Battery
150mAh/3.7V
Power Consumption
100mA
Operating Temperature
-20°C~55°C
Humidity
5%~95%
Work Time
7 hours in power-saving mode and 1.5 hours in normal mode
LED
2 LED Lights to show GPS, GSM and other Status
Button
1 pc SOS, 1 pc power on/off
Microphone
Internal microphone and speaker
`Memory
8M
Sensor
Tremble sensor
GSM Frequency
GSM 850/900/1800/1900MHz
GPS Chipset
SIRF-Star IV
GPS Sensitivity
-163dB
Accuracy
10 meters
I/O
1 port for USB cable

Standard Accessories

USB Data Cable

USB Data Cable

CD

CD

Warranty Card

Warranty Card

TC68 Quick Start Instructions

TC68S Quick Start Instructions

Qualification Certificate

Qualification Certificate

Optional Accessories

Velcro

Velcro

OBD Extender(including Velcro)

OBD Extender (including Velcro)

Packing

u68

Package

Box Size: 146x104x100mm

G/W: 0.5kg per box

Carton Size:

330X140X560mm(10sets)

330x240x560mm(20 sets)

Certificates

Company Certificate

China National HIGH-TECH Enterprise
Shenzhen HITECH Enterprise
Certificated Software Enterprise

Factory Certificate

Quality Management System of ISO9001:2008
Audited Supplier by SGS
Supplier Assessment by Bureau
Veritas Certification(BV)
D&B
Intertek

TC68 Certificate

CE,FCC, CCC

Certificate of Design Patent



More Information
Lens Normal lens
Manufacturer Meitrack
