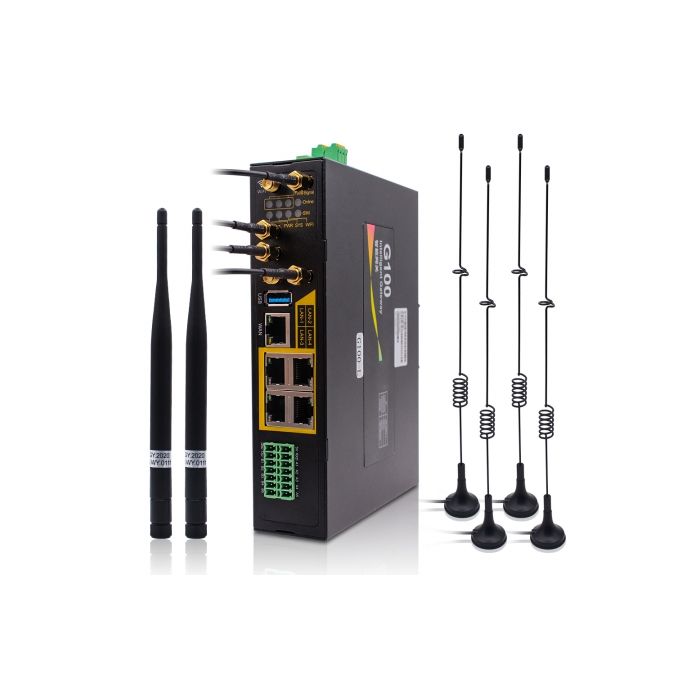

Yifan G100 Industrial IoT wireless intelligent 4G 5G Gateway

SKU
G100
In stock
US$669.24 US$557.70
-
+
Overview

Yifan G100 Industrial IoT wireless intelligent 4G 5G Gateway

Yifan G100 Industrial IoT wireless intelligent 4G 5G Gateway

The G100 is a 5G IoT wireless intelligent gateway that provides users with wireless long-distance big data transmission using a public 3G/4G/ 5G network. The product uses a high-performance industrial grade 32 bit communication processor and industrial-grade wireless modules, with an embedded real-time operating system as a software platform, and provides 1x RS232, 5 x RS485, 4 x Ethernet LANs, and 1 x WAN. The product has been widely used in the M2M industry of the IoT industrial chain, such as smart grid, intelligent transportation, smart manufacturingsmart home, and finance.


Industrial-grade Design
High-performance industrial-grade CPUSupport low-consumption mode, scheduled power-on/power-off mode (Optional)


High Performance

Support 3G/4G/5G and wired WAN dual-link backup(Optional). Support APN/VPDNSupport multiple DDNS provider serviceSupport remote management, SYSLOG, SNMP, TELNET, SSHD, HTTPS, etc. Support SPI firewall, access control, URL filtering, etc.VPN Tunnel: PPTP/L2TP/OpenVPN/IPSEC/GRESupport DHCP server and DHCP client, NAT, DMZ, QOS.Use MQTT+SSL/TLS Https WebSocket to connect to the IoT platform Can access to the Ali could, Huawei Could and other third-party could platformsSupports encryption modes such as DES and 3DES, and supports VRRP hot backupProvide secondary development kit (SDK), easy to use various system interfaces and resources

  • Support GPS function (Optional)
  • Local storage supports flash memory, TF card (or built-in eMMC)
  • With Python, C secondary development, applications can be customized

    Built-in various communication protocols (Modbus RTU/Modbus TCP/IEC60870_5_104, and etc.)
  • Support PC client software to achieve remote configuration, data monitoring, and other features
  • Schedule Reboot, Schedule Online and Offline, etc.
  • Support TCP/IP, UDP, FTP (Optional), HTTP and other network protocols
  • WIFI 802.11b/g/n/ac. Support AP/AP Client/Bridge mode (Optional).
  • Support upgrade software from the local and remote maintenance.
  • Support multiple online trigger ways,including SMS, ring and data. Support link disconnection when timeout
  • Support NTP, RTC embedded.
  • Multiple WAN connection methods, include static IP, DHCP, PPPOE, 3G/UMTS/4G/LTE, DHCP-4G/5G
  • Metal casing, IP30 protection level, suitable for most industrial control applications.
  • Wide range power input (DC 9~36V)
  • High-performance industrial-grade wireless communication module


    Stability & Reliability
  • SIM/UIM card slot with built-in 15KV ESDRS232/RS485 with built-in 15KV ESDAuto recovery mechanism, including online detect and auto redial
  • WDT Watchdog design to ensure system stability
  • Multiple protection mechanisms to ensure system stability, always keeping online
  • Ethernet interface with built-in 15KV ESD

    Standard & Convenience
  • Standard RS232/RS485, Ethernet, Can Port and WiFi intelligent data terminal, automatically enter transmission status after power-on
  • Easy to use and flexible, has multiple working modes
  • DIN-Rail mounting, wall mounting or desktop
  • Convenient system configuration and maintenance interface (including local and remote WEB or CLI access)
  • Powerful central management software for easy device management (optional)
  • Provide standard wired WAN port (support standard PPPOE protocol)



Cellular Specification





Items

Contents



Standard and Band

5G NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78

LTE: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43

WCDMA: B1/B5/B8

Optional:

5G NR: n2/n5/n12/n14/n25/n30/n41/n48/n66/n70/n71/n77

LTE: B2/B4/B5/B12/B13/B29/B30/B66/B71/B41/B46(LAA)/B48

Optional:

5G NR: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79

LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

LTE TDD: B34/B38/B39/B40/B41/B42/B43/ B46(LAA)B48



Bandwidth

5G NR:DL 3.4Gbps, UL 900Mbps

LTE Cat19:DL 1.6Gbps,UL 211Mbps

HSPA+:DL 42Mbps,UL 5.76Mbps



Transmit Power

< 23dBm



Sensitivity

< -97dBm



WIFI Specification



Items

Contents

Standard and Band

Support IEEE802.11b/g/n, 2.4G,

Support IEEE802.11ac, 5.8G

Bandwidth

IEEE802.11b/g:Maximum speed rate up to 108Mbps

IEEE802.11n:Maximum speed rate up to 300Mbps

IEEE802.11ac:Maximum speed rate up to 780Mbps

Security

Support WEP, WPA, WPA2 encrypt methods, optional WPS function

Transmit Power

26dBm (11b), 21.5dBm (11g), 20dBm (11n), 16dBm (11ac)

Sensitivity

< -72dBm @ 54Mbps

Hardware System



Items

Contents

CPU

Industrial-grade 32-bit communication processor

Flash

32MB

DDR3



More Information
Manufacturer Yifan
