Milesight UF51 5G WiFi GPS PoE CPE industrial router from 3G Mobile CCTV

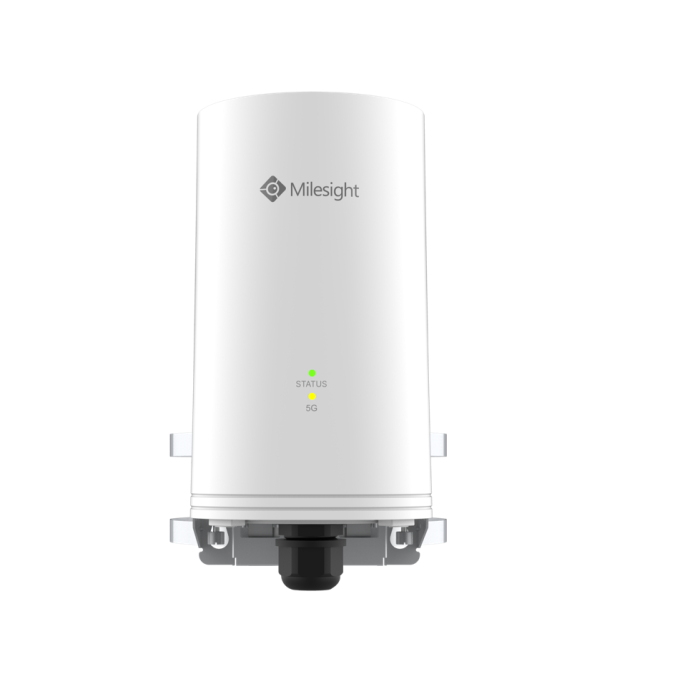

Milesight UF51 5G WiFi GPS PoE CPE industrial router
Products Description
Products Description
Milesight UF51 5G CPE
UF51 5G CPE is dedicated to cost effective solutions for 5G wireless networking application. Adopting high-performance industrial platform of quad-core CPU and 5G cellular module, UF51 is capable of providing ultra-fast network and ultra-small package to ensure the extremely safe and reliable connection to the wireless network. With various kinds of installation methods, IP67 waterproof enclosure and novel design, UF51 is applicable to indoor and outdoor applications. Meanwhile, UF51 also supports 2-port Gigabit Ethernet switch, serial ports (RS232/RS485) and DI/DO (Digital input/Digital output), which enable you to scale up M2M application combining data and video in limited time and budget. UF51 is particularly suitable for smart offices, video surveillance, digital media implementations, industrial automation, traffic applications, robots and so on
Specifications
|
||||
Hardware System
|
CPU
|
Qualcomm Quad-core ARM Cortex-A7,716.8 MHz
|
||
Memory
|
512 MB DDR3 RAM and 8 GB Flash
|
|||
Cellular Interface
|
Network
|
5G/4G LTE
|
||
Antenna
|
8 × Internal Antennas
|
|||
SIM Slot
|
1(Mini SIM-2FF)
|
|||
Ethernet Interface
|
Numbers
|
2 × 10/100/1000 Mbps
|
||
Property
|
1 × WAN + 1 × LAN or 2 × LAN
|
|||
Mode
|
Full or half duplex (Auto-Sensing)
|
|||
PoE
|
1 × 802.3af PoE PD on WAN/LAN Port
|
|||
Wi-Fi Interface
|
Antenna
|
4 × Internal Antennas
|
||
Standards
|
IEEE 802.11b/g/n,2.4 GHz
IEEE 802.11a/n/ac,5 GHz |
|||
Tx Power
|
2.4 GHz: 26dBm (max)
5 GHz: 26.4dBm (max) |
|||
Rx Sensitivity
|
2.4G:
802.11b: ≤ -92dBm@11Mbps 802.11g: ≤ -78dBm@54Mbps 802.11ac VHT20: ≤ -91dBm@MCS0 802.11ac VHT20: ≤ -66dBm@MCS8 802.11ac VHT40: ≤ -88.5dBm@MCS0 802.11ac VHT40: ≤ -64dBm@MCS8 5G: 802.11a: ≤ -91dBm@6Mbps 802.11a: ≤ -76dBm@54Mbps 802.11ac VHT20: ≤ -90dBm@MCS0 802.11ac VHT20: ≤ -68dBm@MCS8 802.11ac VHT40: ≤ -87dBm@MCS0 802.11ac VHT40: ≤ -65dBm@MCS9 802.11ac VHT80: ≤ -84dBm@MCS0 802.11ac VHT80: ≤ -60dBm@MCS9 |
|||
Modes
|
AP and Client mode
|
|||
Security
|
WPA/WPA2 authentication, WEP/TKIP/AES encryption
|
|||
GPS 1(Optional)
|
Antenna
|
1 × Internal Antenna
|
||
Technology
|
GPS/GLONASS/Beidou/Galileo/QZSS
|
|||
Serial Interface
|
Numbers
|
1 × RS232 or 1 × RS485 (Switchable)
|
||
Connector
|
3.5 mm Terminal Block
|
|||
Baud Rate
|
300bps to 230400bps
|
|||
DI/DO
|
Numbers
|
1 × DI (dry contact) + 1 × DO (wet contact), galvanic isolation
|
||
Connector
|
3.5 mm Terminal Block
|
|||
Maximum V/A
|
0.3A@30VDC (DO)
|
|||
Others
|
Reset Button
|
1 × RESET
|
||
LED Indicators
|
1 × STATUS,1 × 5G (Cellular Networks)
|
|||
Built-in
|
Watchdog, RTC, Timer
|
|||
Software
|
Network Protocols
|
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS,
VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, etc. |
||
VPN
|
DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
|
|||
Security
|
Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls,
DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough |
|||
Management
|
Web, CLI, SMS, On-demand dial up, SNMP v1/v2c/v3, DeviceHub
|
|||
AAA
|
Radius, Tacacs+, LDAP, Local Authentication
|
|||
Multilevel Authority
|
Multiple Levels of User Authority
|
|||
Reliability
|
VRRP, WAN Failover
|
|||
Serial Port
|
Transparent (TCP Client/Server, UDP), Modbus Master/Slave,
Modbus Gateway (Modbus RTU to Modbus TCP) |
|||
Power Supply
|
Power Input
|
1. 9-48 VDC, with Surge-Protection and Reverse Polarity Protection
2. 802.3 af PoE PD |
||
Power Connector
|
2-pin 3.5 mm Terminal Block
|
|||
Physical Characteristics
|
Ingress Protection
|
IP67
|
||
Housing
|
Polycarbonate + Metal
|
|||
Dimension
|
No Waterproof Connector: ф105 x 110 x 188 mm (ф4.13 x 4.33 x 7.40 in)
With Waterproof Connector: ф105 x 110 x 218 mm (ф4.13 x 4.33 x 8.58 in) |
|||
Installation
|
Desktop, Pole Mounting, Wall Mounting, Bottom Magnetic/Lock Mounting
|
|||
Environmental
|
Operating Temperature
|
-40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C
|
||
Storage Temperature
|
-40°C to +85°C (-40℉ to +185℉)
|
|||
Ethernet Isolation
|
1.5 kV RMS
|
|||
Relative Humidity
|
0% to 95% (non-condensing) at 25°C/77℉
|
Manufacturer | Milesight |
---|
